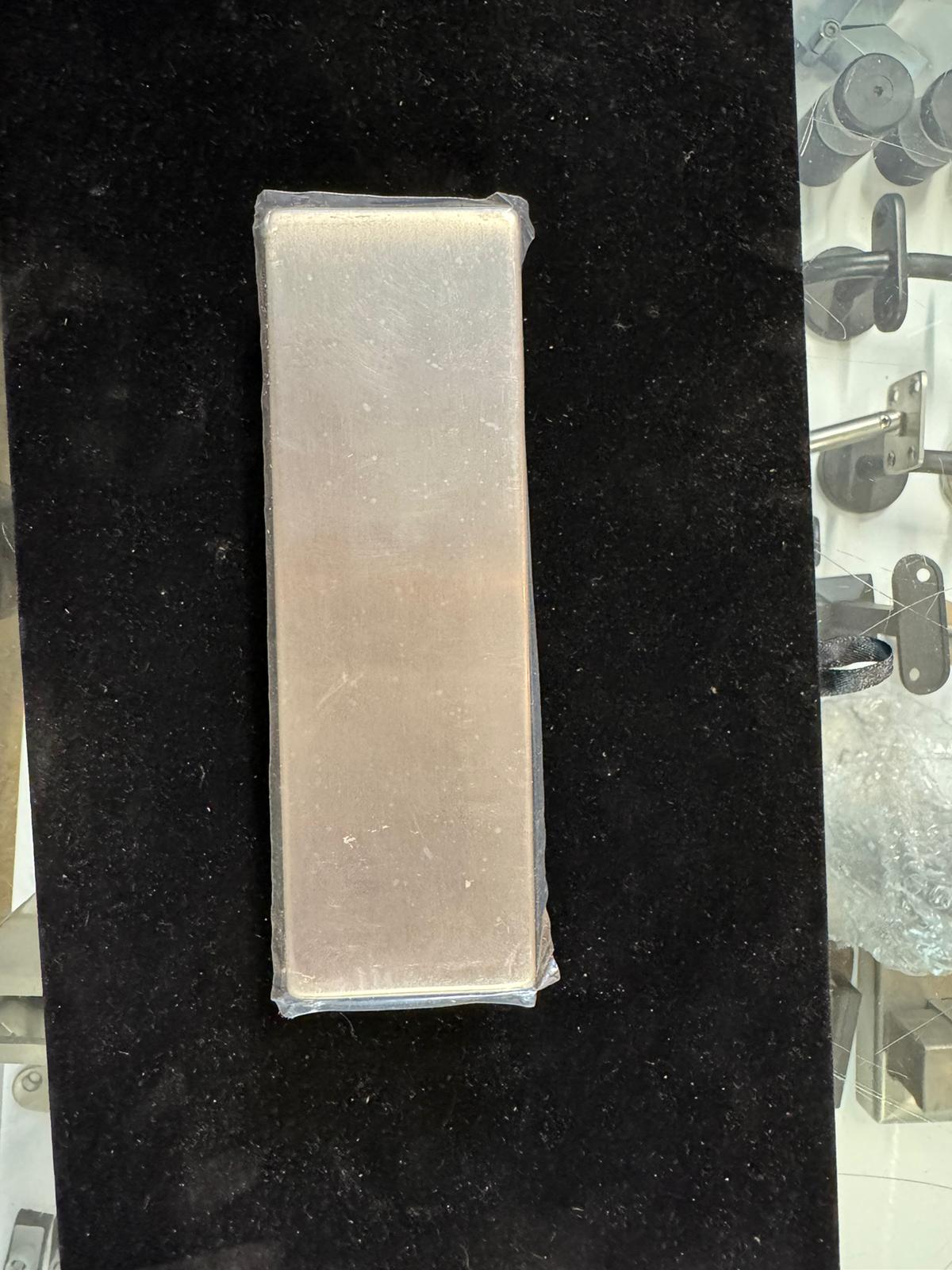

Top Patch Hinge

Premium Top Patch Hinge for Frameless Glass Doors

Our Premium Top Patch Hinge is engineered for smooth integration with overhead concealed door closers, delivering both strength and refined design for modern frameless glass door systems. Designed to work with compatible patch pivot top plate (sold separately), this top patch fitting ensures reliable alignment and long-term performance in commercial and residential applications.

Perfect for office entrances, retail storefronts, glass partitions, and high-end interior fit-outs, this top patch hinge provides structural support while maintaining a clean, minimalist appearance.

Designed for Precision & Compatibility

Supplied with gaskets for multiple glass thicknesses, this top patch fitting supports:

• Glass Thickness: 3/8” (10 mm) and 1/2” (12 mm) tempered glass

• Maximum Door Weight: 88 kg (194 lbs)

• Maximum Door Width: 42” (1000 mm)

• Maximum Door Height: 102” (2590 mm)

• European Backset: 2-9/16”

It has been cycle tested for up to 500,000 operations, ensuring dependable performance even in high-traffic environments. The included gaskets provide a secure, snug fit, helping maintain door stability and proper alignment over time.

Durable Construction for Interior & Exterior Use

Manufactured from high-grade aluminum with a custom Grade 304 stainless steel cover plate, this top patch hinge is built for durability and corrosion resistance. It performs reliably in both interior and exterior installations, making it a versatile choice for a wide range of architectural glass projects.

Available Finishes

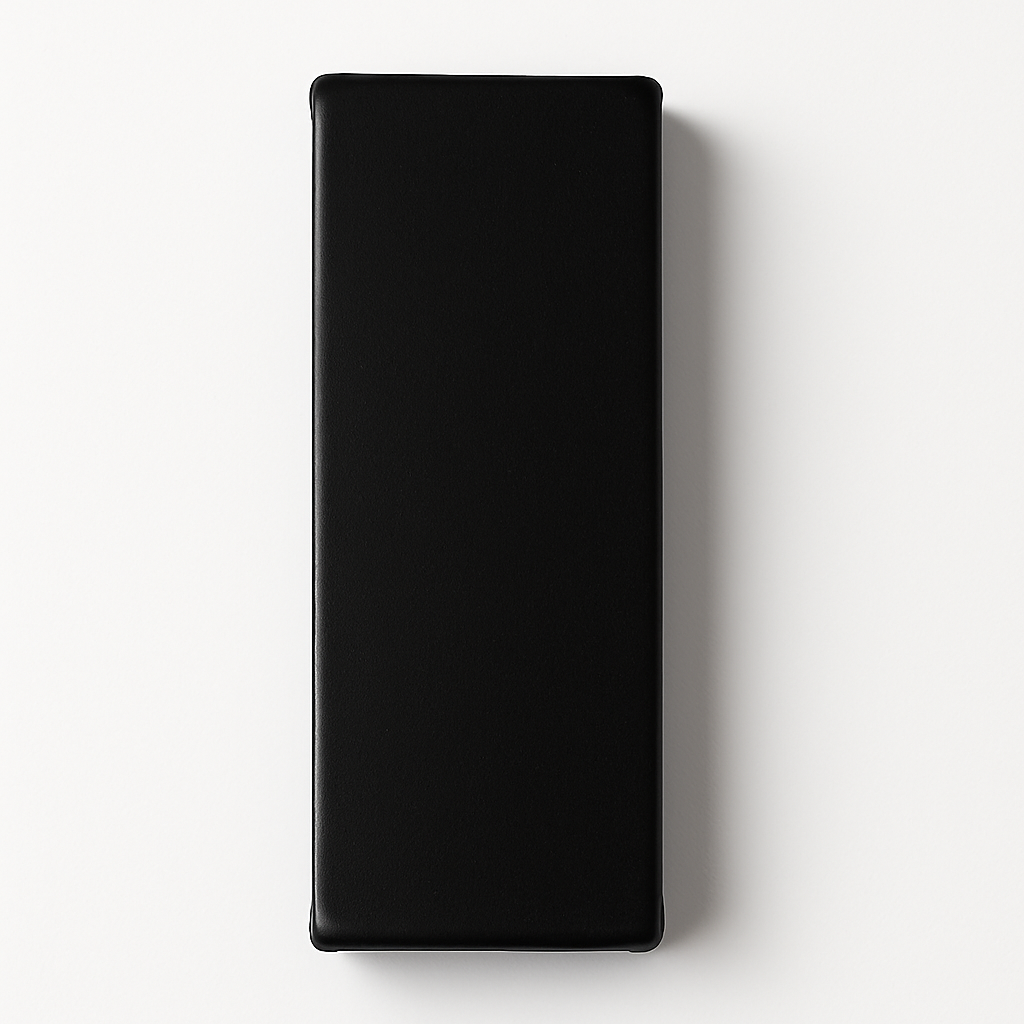

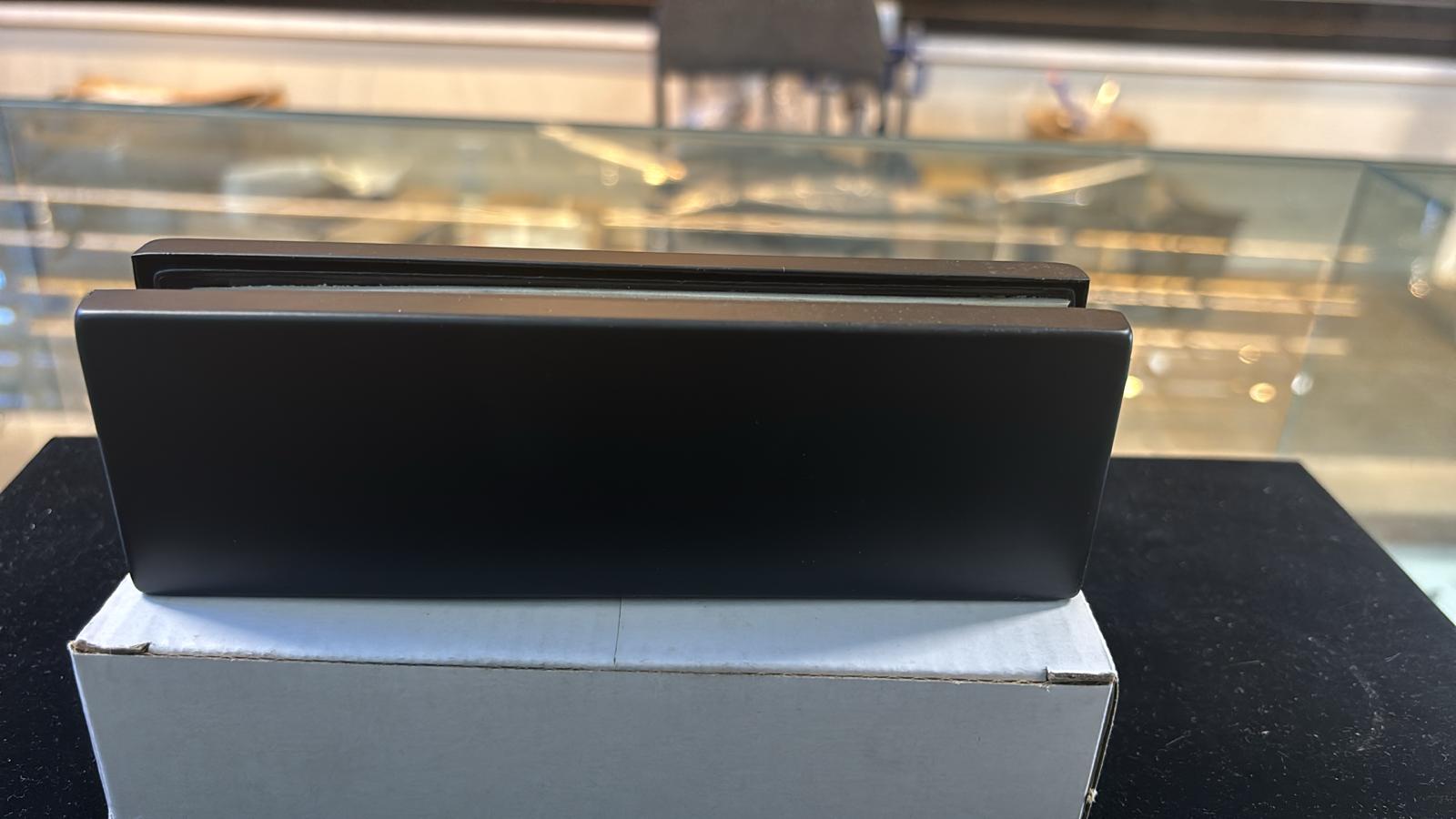

• Matte Black

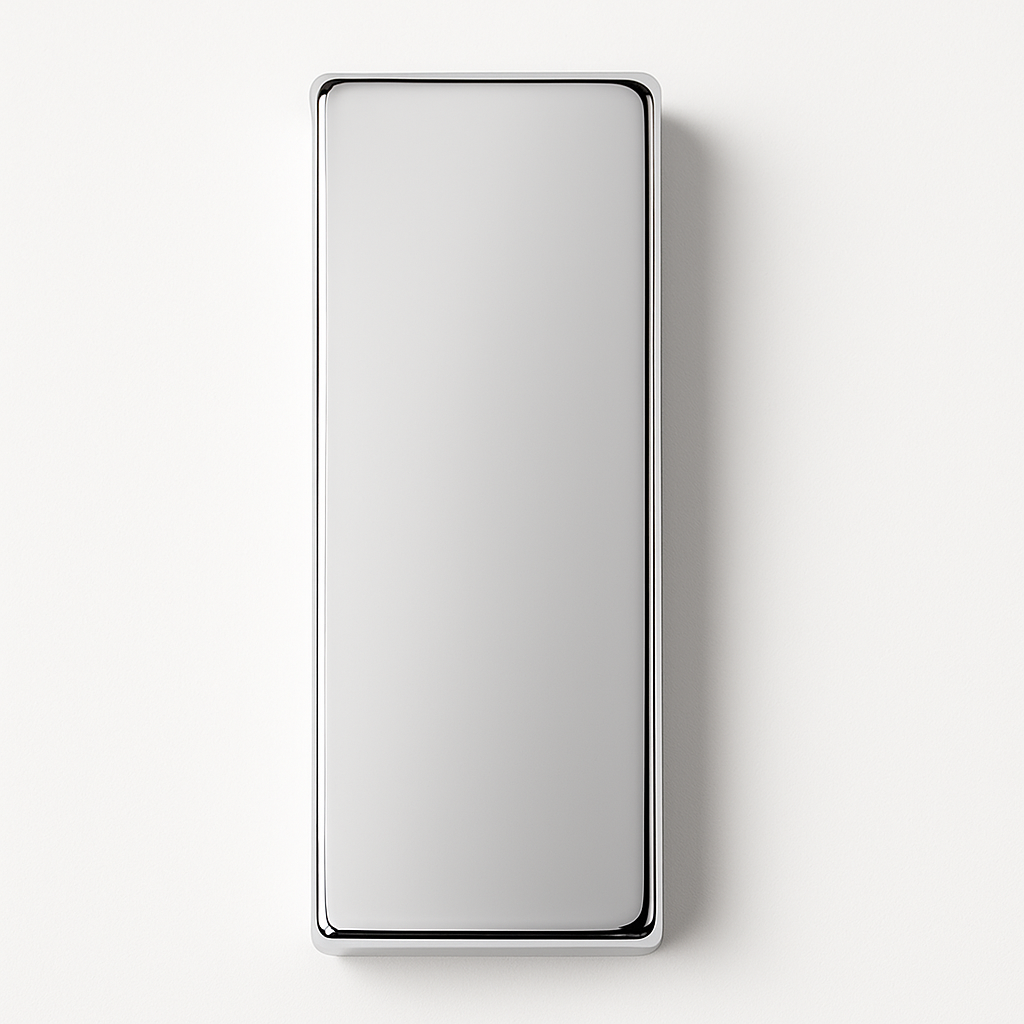

• Chrome

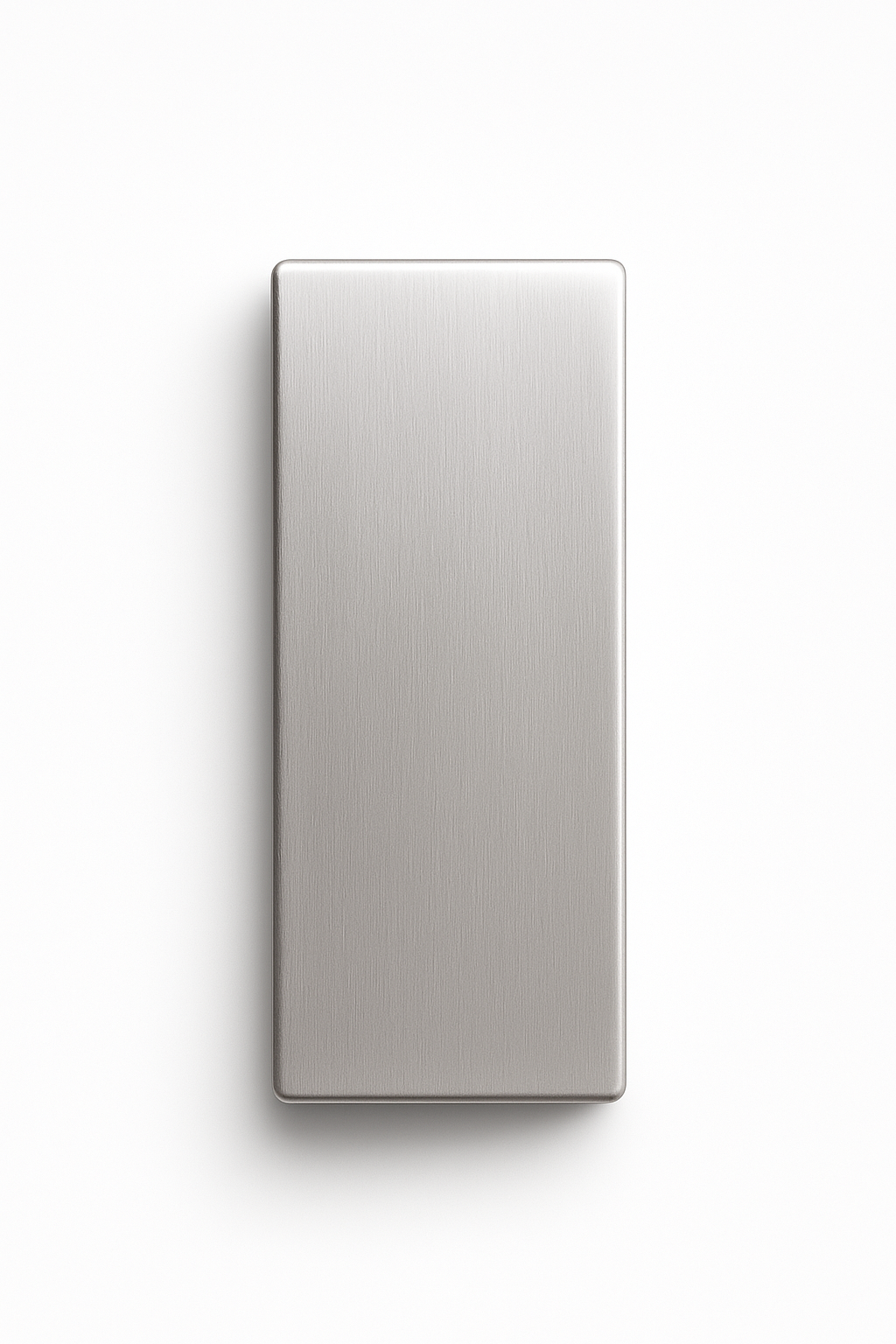

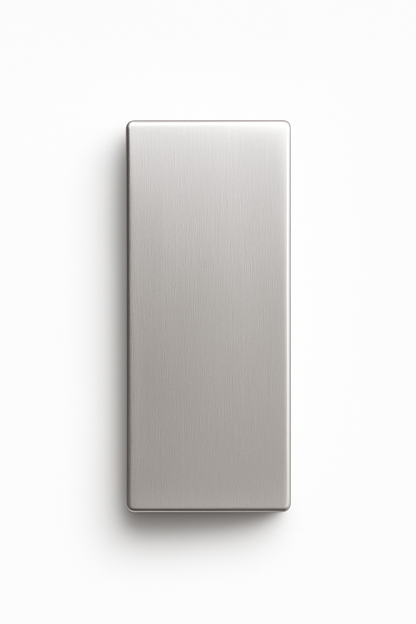

• Brushed Nickel

Key Features

• Top patch hinge for frameless glass doors

• Compatible with overhead concealed door closers

• Suitable for 10mm & 12mm tempered glass

• Supports doors up to 88 kg (194 lbs)

• Maximum 42” width and 102” height

• 500,000 cycle tested durability

• European backset 2-9/16”

• Grade 304 stainless steel cover plate

• Interior & exterior application

• 5 year warranty

Glass fabrication required. Please refer to PDF technical drawings for accurate cut-out specifications before production.

For technical assistance or bulk orders, please contact our team.
