Standard GEN Hinge Wall To Glass Off Set Plate

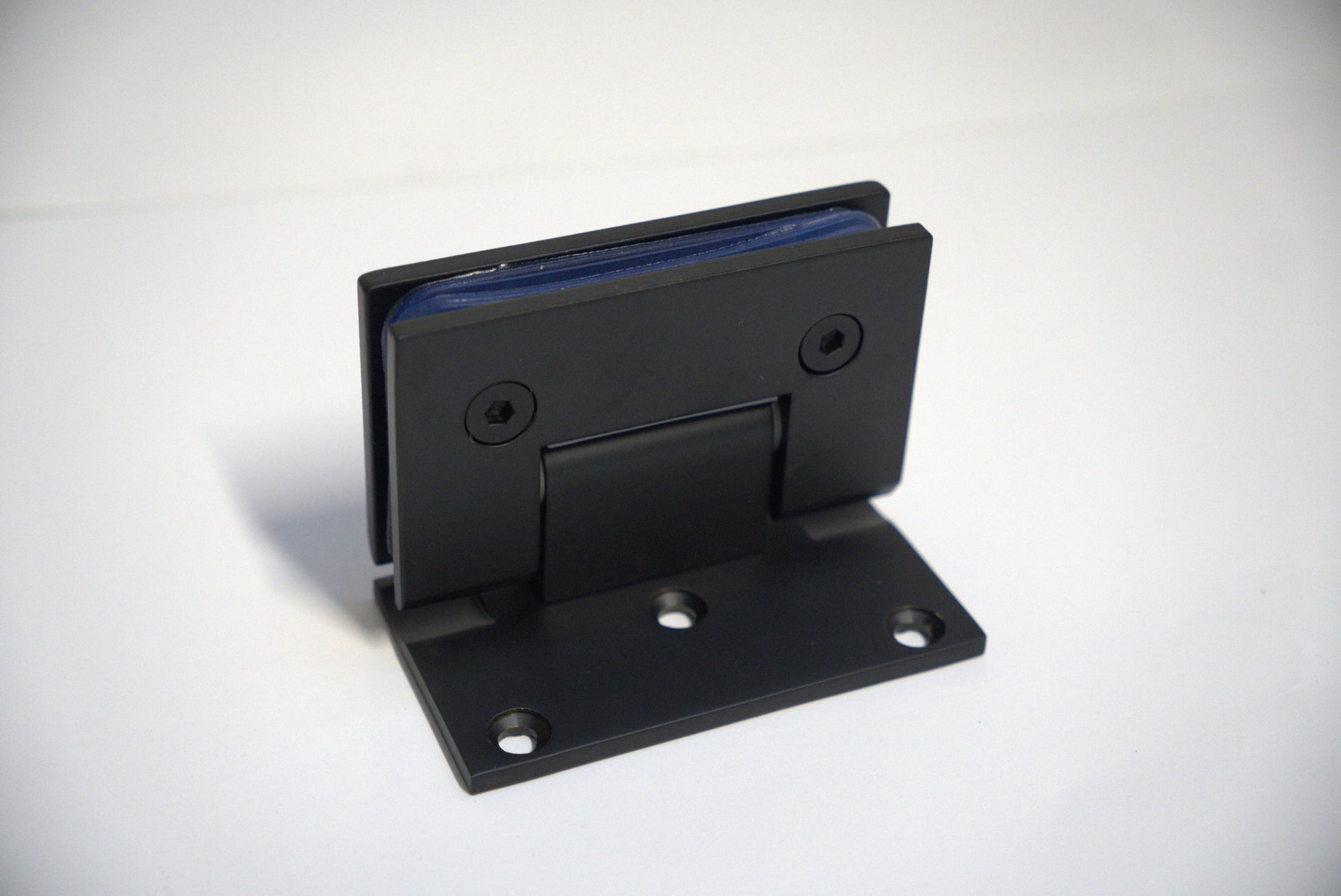

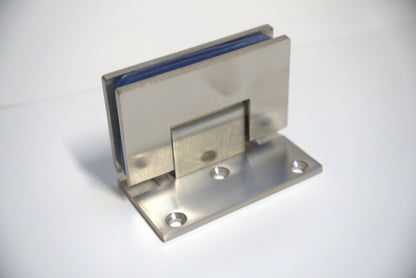

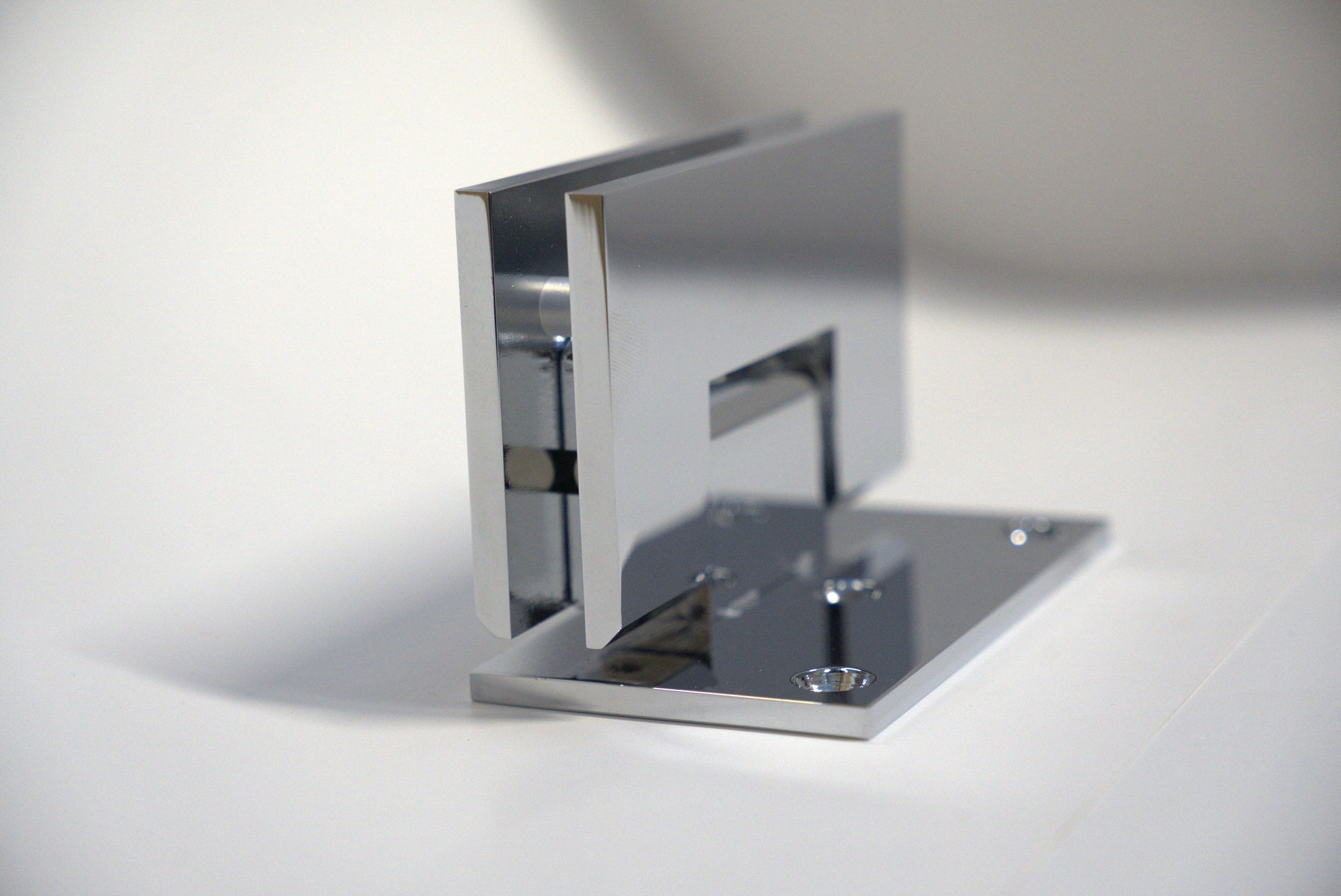

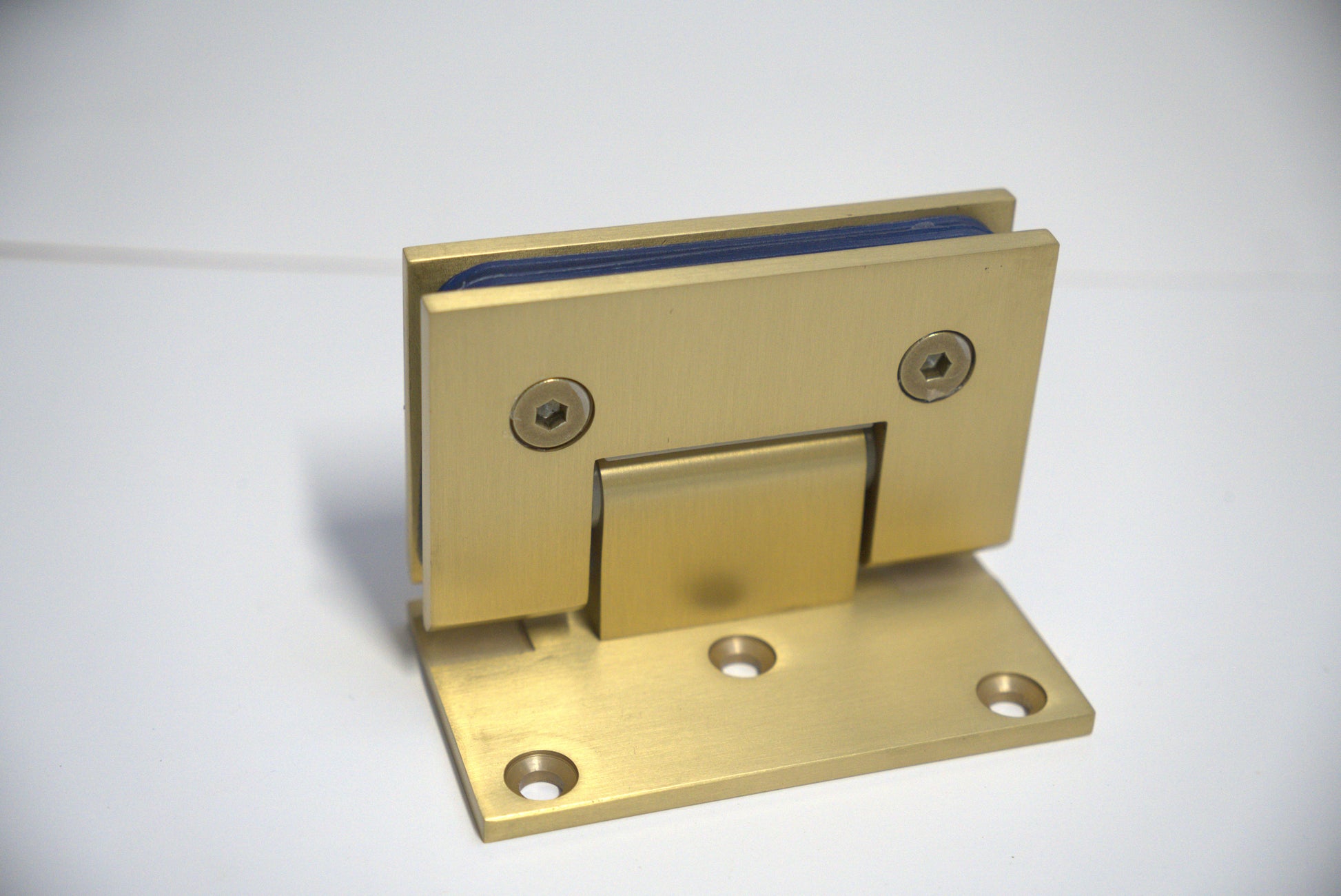

Standard Hinge Wall-to-Glass Offset Plate

The Standard Wall-to-Glass Offset Plate Shower Door Hinge is a reliable hardware solution designed for frameless shower door installations where additional clearance or positioning flexibility is required. The offset plate design allows for easier alignment while maintaining a clean, modern appearance that complements contemporary bathroom spaces.

Built for strength and smooth operation, this hinge delivers dependable performance for both residential and commercial shower enclosures.

Key Features

• Solid Brass Construction: Crafted from high-quality brass to provide durability, corrosion resistance, and long-term performance in humid environments.

• Glass Thickness Compatibility: Supports tempered glass panels from 5/16″ to 1/2″ (8–12 mm).

• Secure Glass Holding System: Anti-slip gasket design improves grip and helps keep the glass panel firmly in place after installation.

• Adjustable Closing Control: Reversible 5-degree pin allows precise door positioning and controlled closing action.

• Weight Capacity:

  • Two hinges: Up to 80 lbs (36 kg) with a maximum door width of 28″ (711 mm).

  • Three hinges: Up to 120 lbs (54 kg) with a maximum door width of 32″ (813 mm).



• Installer-Friendly Design: Engineered for efficient installation using standard tools, saving time on site.

Available Finishes

• Chrome
• Black
• Brushed Nickel
• Gold

Specifications

• Application: Wall-to-glass shower door installation

• Design: Offset plate, square-edge profile

• Material: Solid brass

• Glass Type: Tempered safety glass

• Warranty: Covered by a 5-year manufacturer warranty (for more information check our warranty policy)

Applications

This offset plate wall-to-glass hinge is ideal for frameless shower doors that require extra mounting flexibility without sacrificing appearance or strength. Its clean lines and dependable performance make it suitable for modern bathroom designs and professional glass installations.

For more information or assistance, contact us at info@bestglassparts.ca.
