Standard GEN Hinge Wall To Glass H Plate

Standard Hinge Wall-to-Glass H Plate

The Standard Wall-to-Glass H Plate Shower Door Hinge is a premium hardware solution designed for frameless shower door installations. Featuring a modern square profile and solid construction, this hinge delivers reliable performance while maintaining a clean, contemporary appearance ideal for today’s bathroom designs.

Built for strength, precision, and smooth operation, this wall-to-glass hinge is suitable for both residential and commercial shower enclosures.

Key Features

• Durable Brass Construction: Made from high-quality solid brass for long-lasting strength and excellent corrosion resistance in wet environments.

• Glass Thickness Compatibility: Designed to support tempered glass panels from 5/16″ to 1/2″ (8–12 mm).

• Secure Glass Grip: Integrated anti-slip gasket system enhances holding power and helps prevent glass movement after installation.

• Adjustable Closing Action: Includes a reversible 5-degree pin that allows precise door alignment and customizable closing control.

• Weight Capacity:

  • Two hinges: Supports doors up to 80 lbs (36 kg) with a maximum width of 28″ (711 mm).

  • Three hinges: Supports doors up to 120 lbs (54 kg) with a maximum width of 32″ (813 mm).



• Easy Installation: Designed for fast and efficient installation using standard tools, reducing on-site labor time.

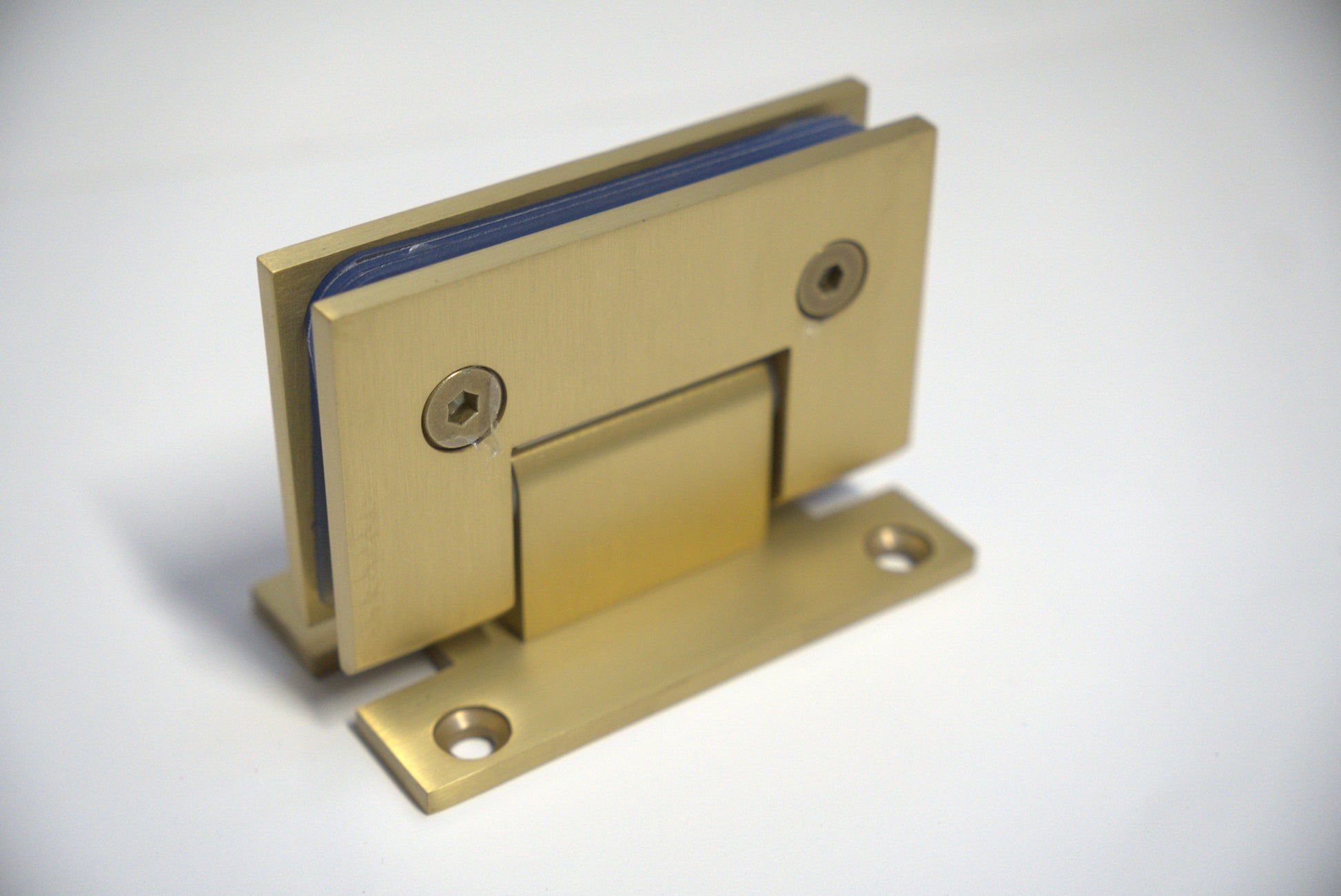

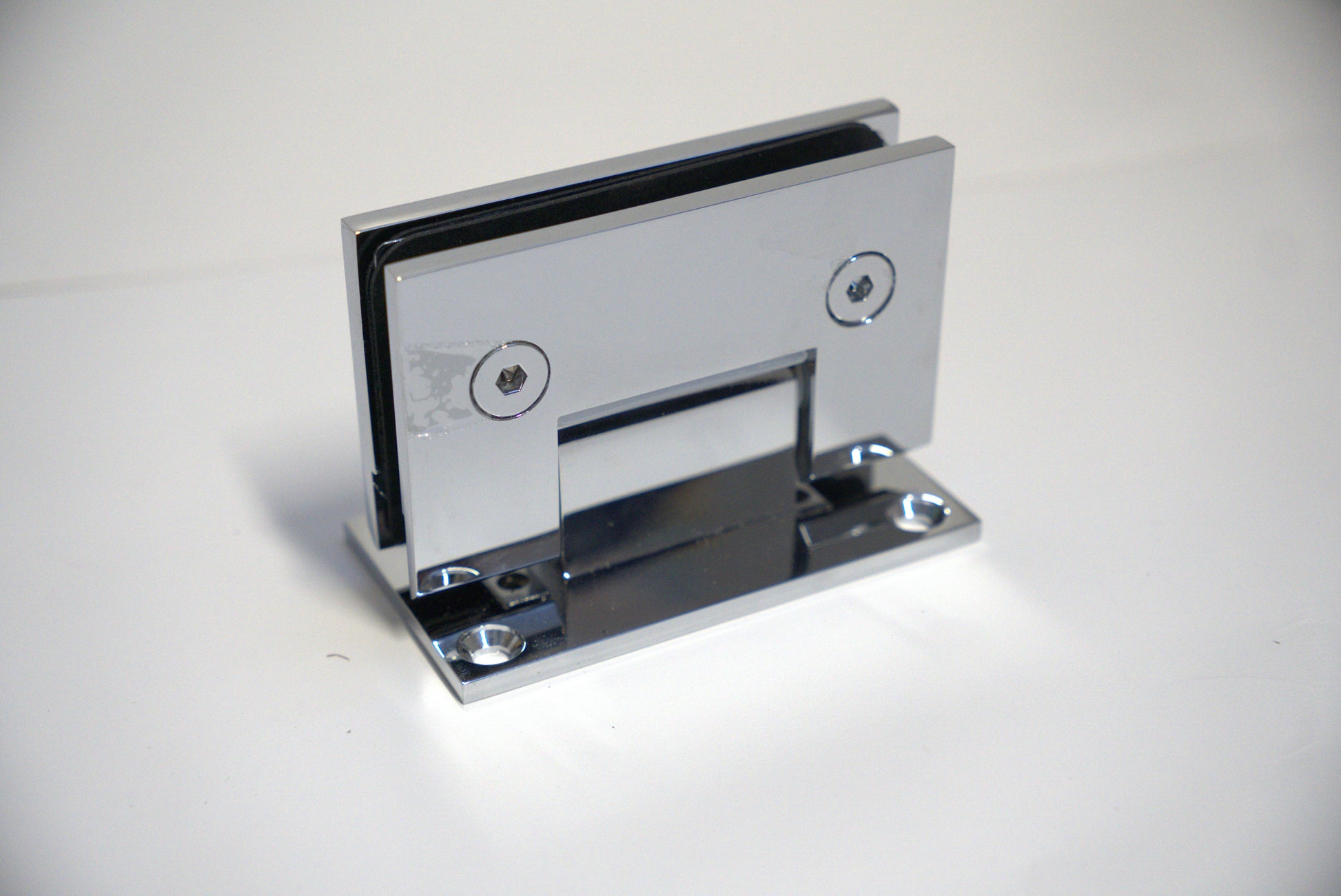

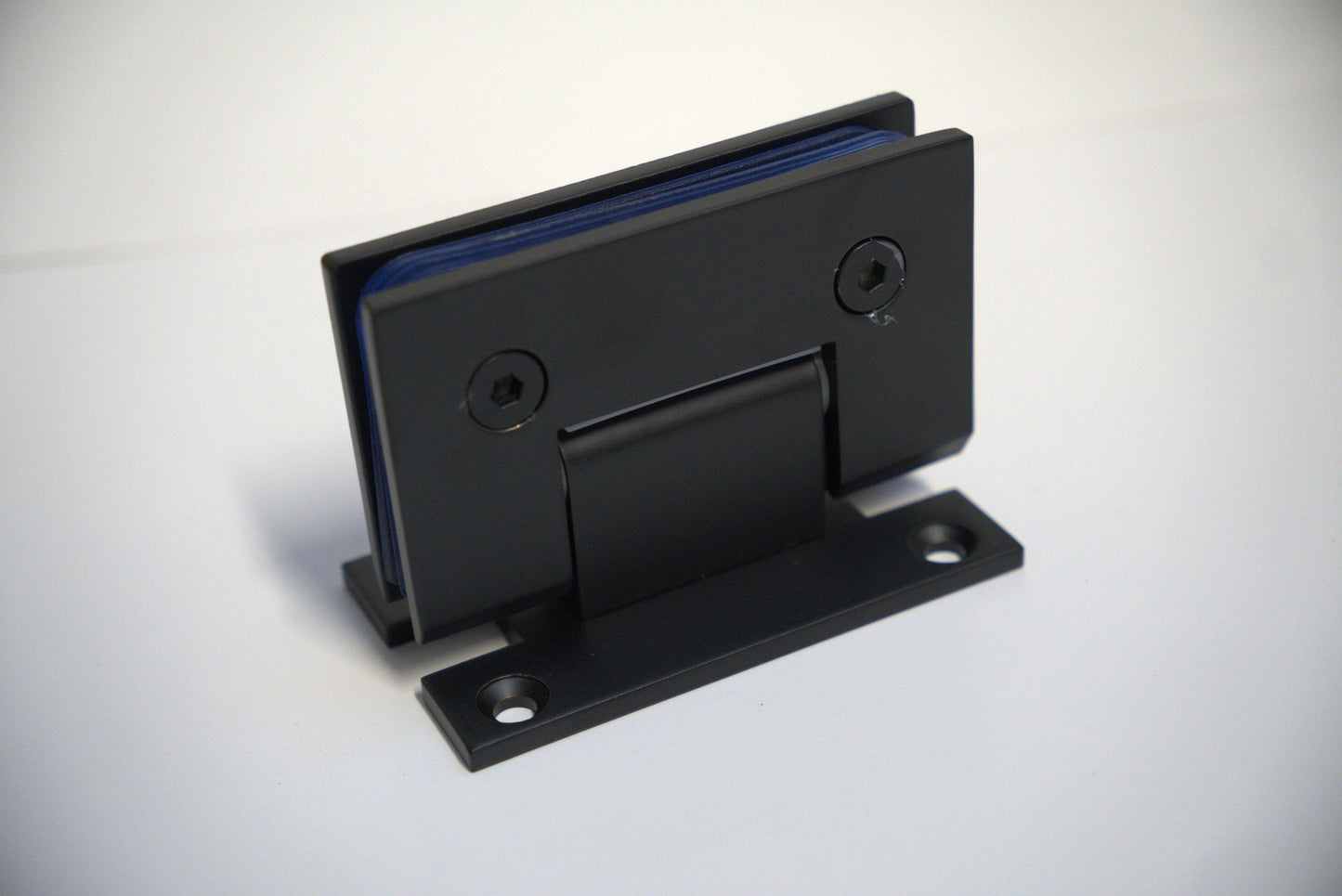

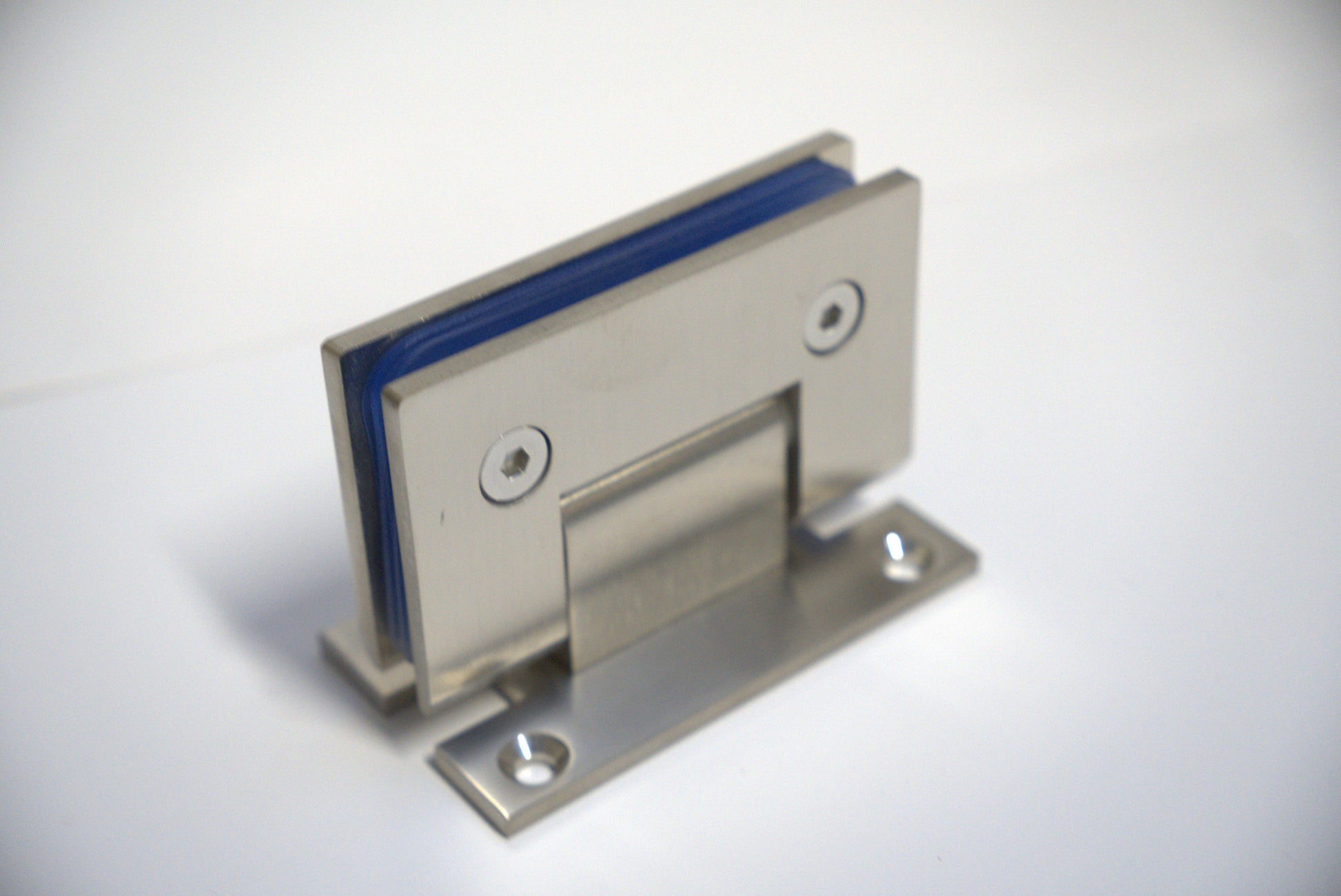

Available Finishes

• Chrome

• Gold

• Brushed Nickel

• Matte Black

Specifications

• Application: Wall-to-glass shower door installation

• Design: H Plate with square-edge profile

• Material: Solid brass

• Glass Type: Tempered safety glass

• Warranty: Includes a 5-year manufacturer warranty (click here to view our warranty policy)

Applications

This H Plate wall-to-glass hinge is ideal for frameless shower doors, offering a minimalist look while delivering dependable strength and smooth operation. It pairs well with modern bathroom layouts and professional glass installations.

For more information or assistance, contact us at info@bestglassparts.ca.
