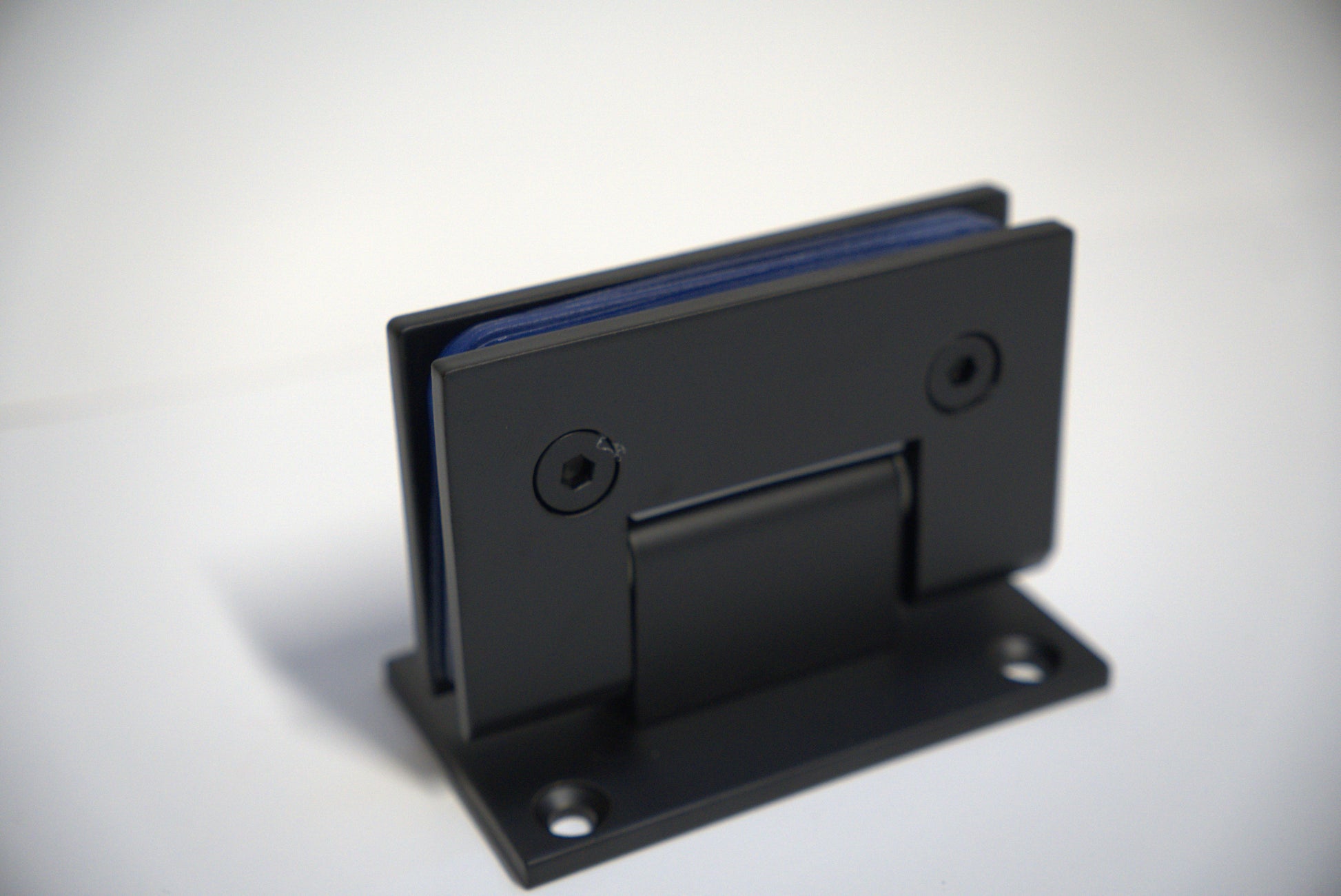

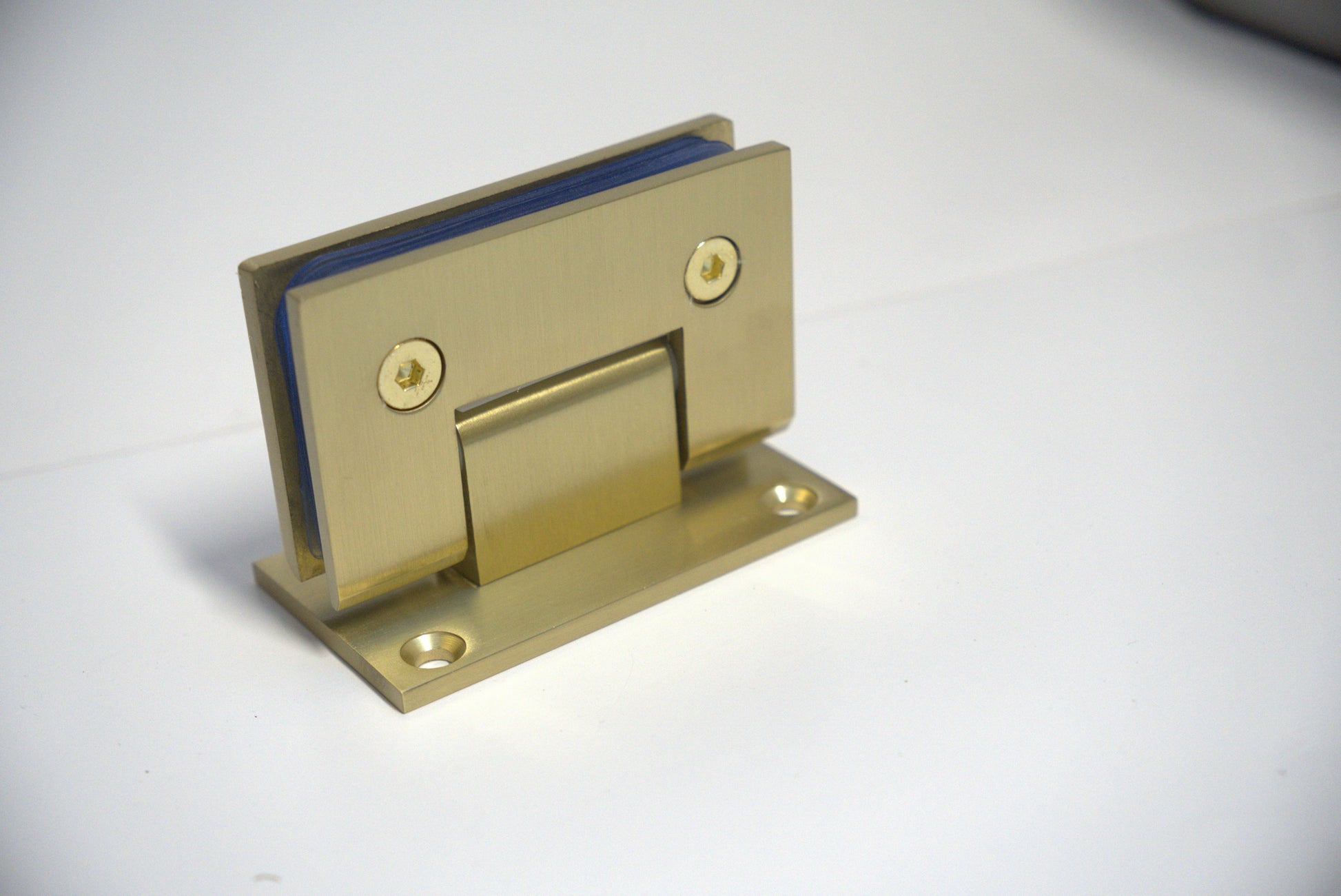

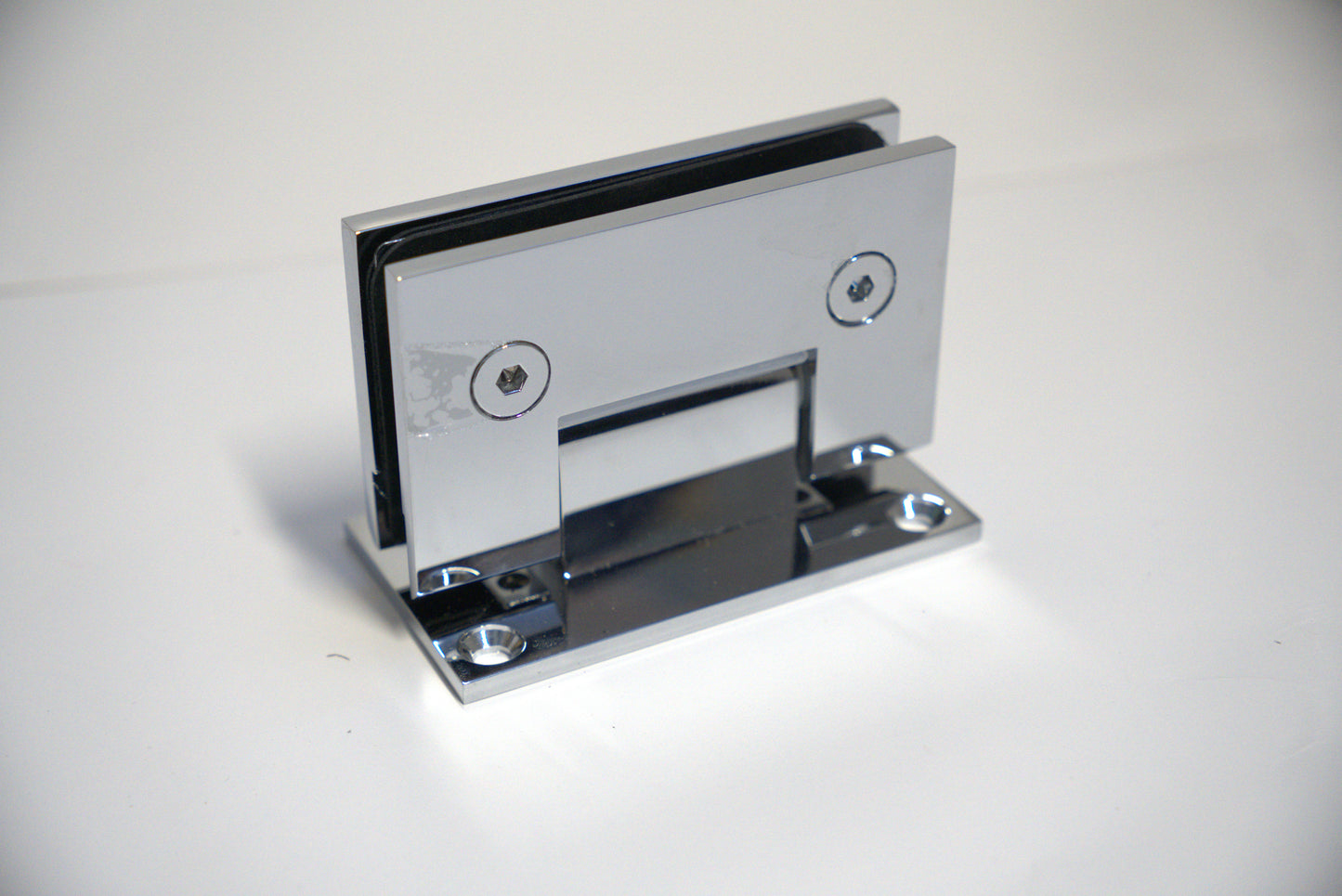

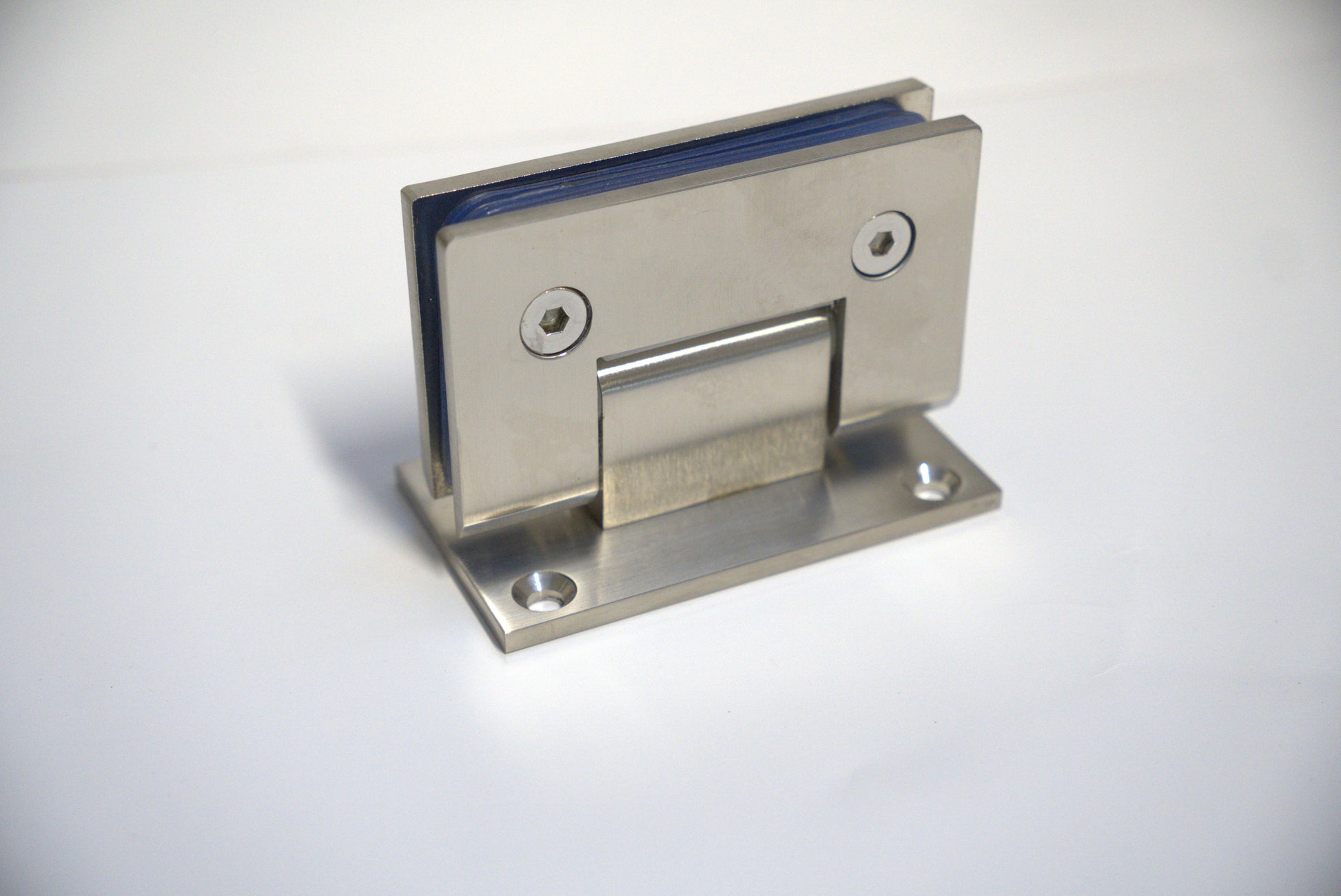

Standard Hinge Wall to Glass – Full Plate
The Standard Hinge Wall to Glass – Full Plate is a premium square-profile shower hinge designed for secure wall-to-glass installations in frameless shower enclosures. Featuring a full back plate for added wall coverage and strength, this hinge delivers a clean architectural look while providing dependable, long-term performance.
Built for modern bathrooms and professional glass installations, it combines durability, precision alignment, and smooth door operation.
Key Features
Solid Brass Construction
Manufactured from high-grade solid brass for superior strength, corrosion resistance, and reliable performance in humid shower environments.
Glass Thickness Compatibility
Designed for tempered glass panels from 5/16″ to 1/2″ (8–12 mm).
Anti-Slip Glass Protection
Includes pre-installed protective gaskets that improve grip, reduce glass movement, and help protect panel edges during long-term use.
Adjustable Alignment
Features a reversible 5-degree pivot pin for fine-tuning door alignment and achieving proper closure during installation.
Weight Capacity
-
Two Hinges: Supports doors up to 80 lbs (36 kg) with a maximum width of 28″ (711 mm)
-
Three Hinges: Supports doors up to 120 lbs (54 kg) with a maximum width of 32″ (813 mm)
Full Plate Design
Extended mounting plate provides enhanced wall contact and a bold, structured appearance for heavier frameless shower doors.
Easy Installation
Engineered for straightforward installation using standard tools. Pre-attached gaskets streamline the setup process for installers.
Specifications
-
Application: Wall-to-Glass Shower Door Hinge
-
Style: Full Plate, Square Design
-
Material: Solid Brass
-
Glass Type: Tempered Glass
-
Warranty: 5-Year Manufacturer Warranty (Click here to check our warranty policy)
Applications
The Standard Hinge Wall to Glass – Full Plate is ideal for:
-
Frameless shower door systems
-
Custom bathroom renovations
-
Residential and commercial glass installations
-
Heavy-duty shower door applications
Its full plate structure offers added stability while maintaining a modern, minimalist aesthetic. For product inquiries or bulk orders, contact info@bestglassparts.ca.
