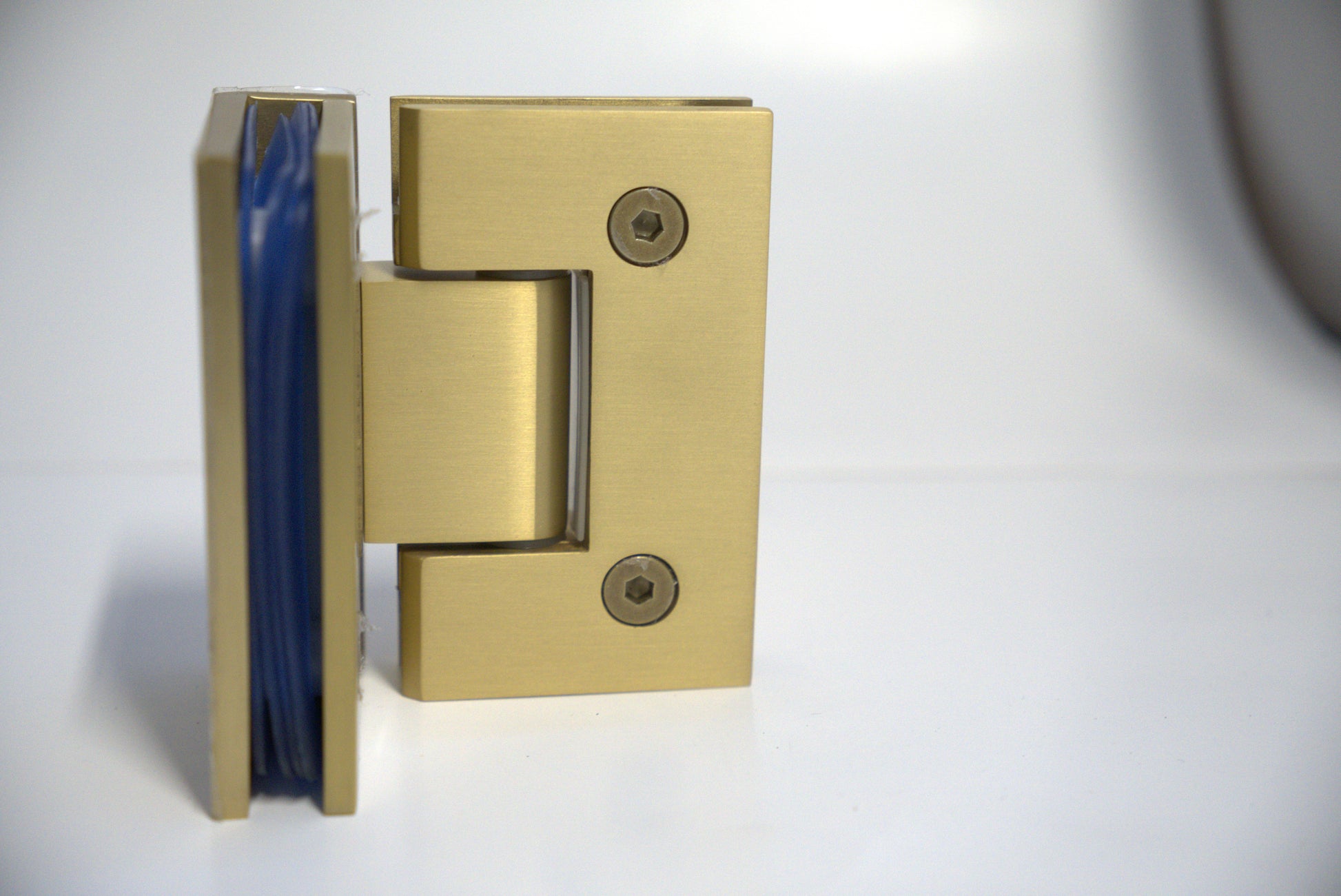

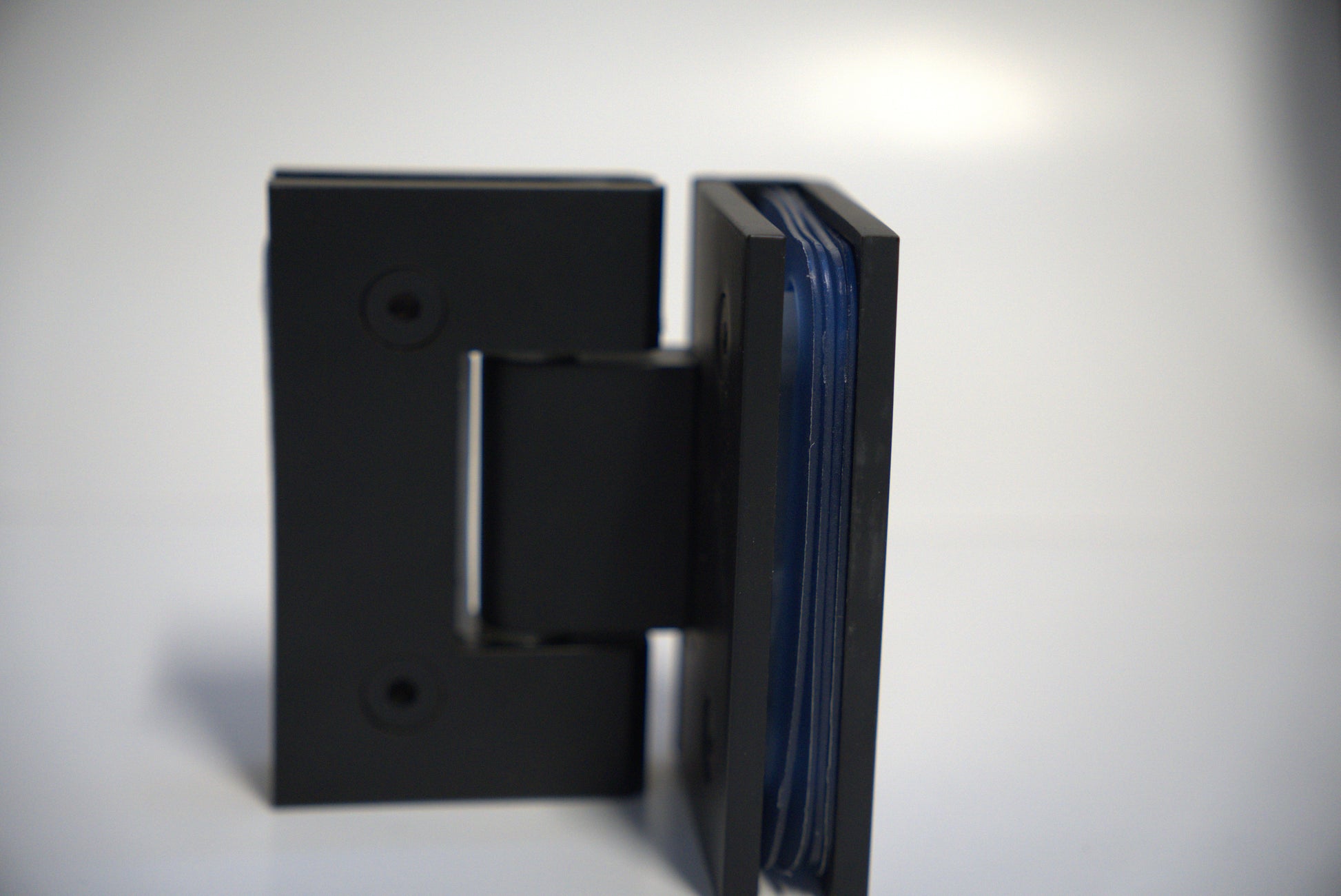

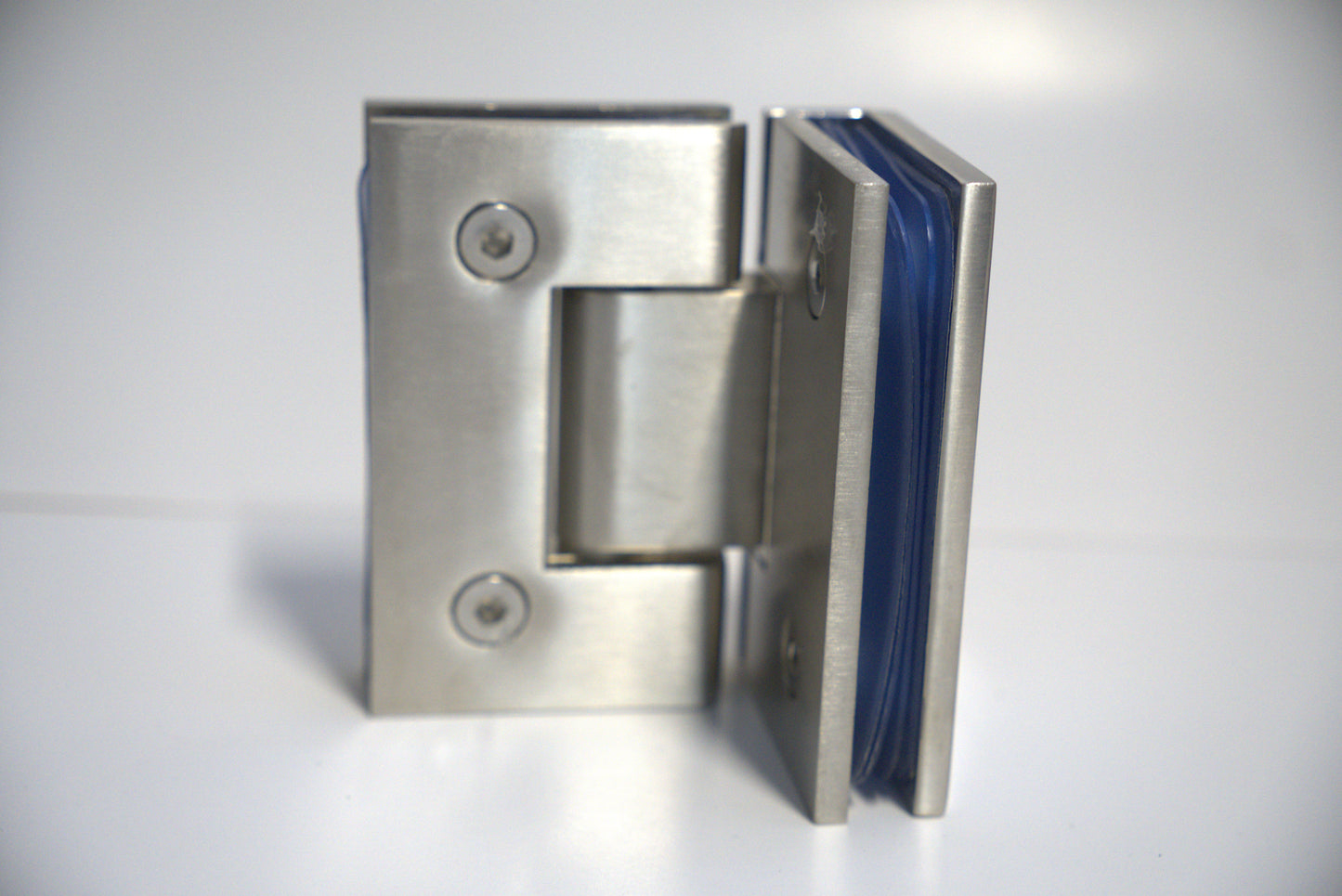

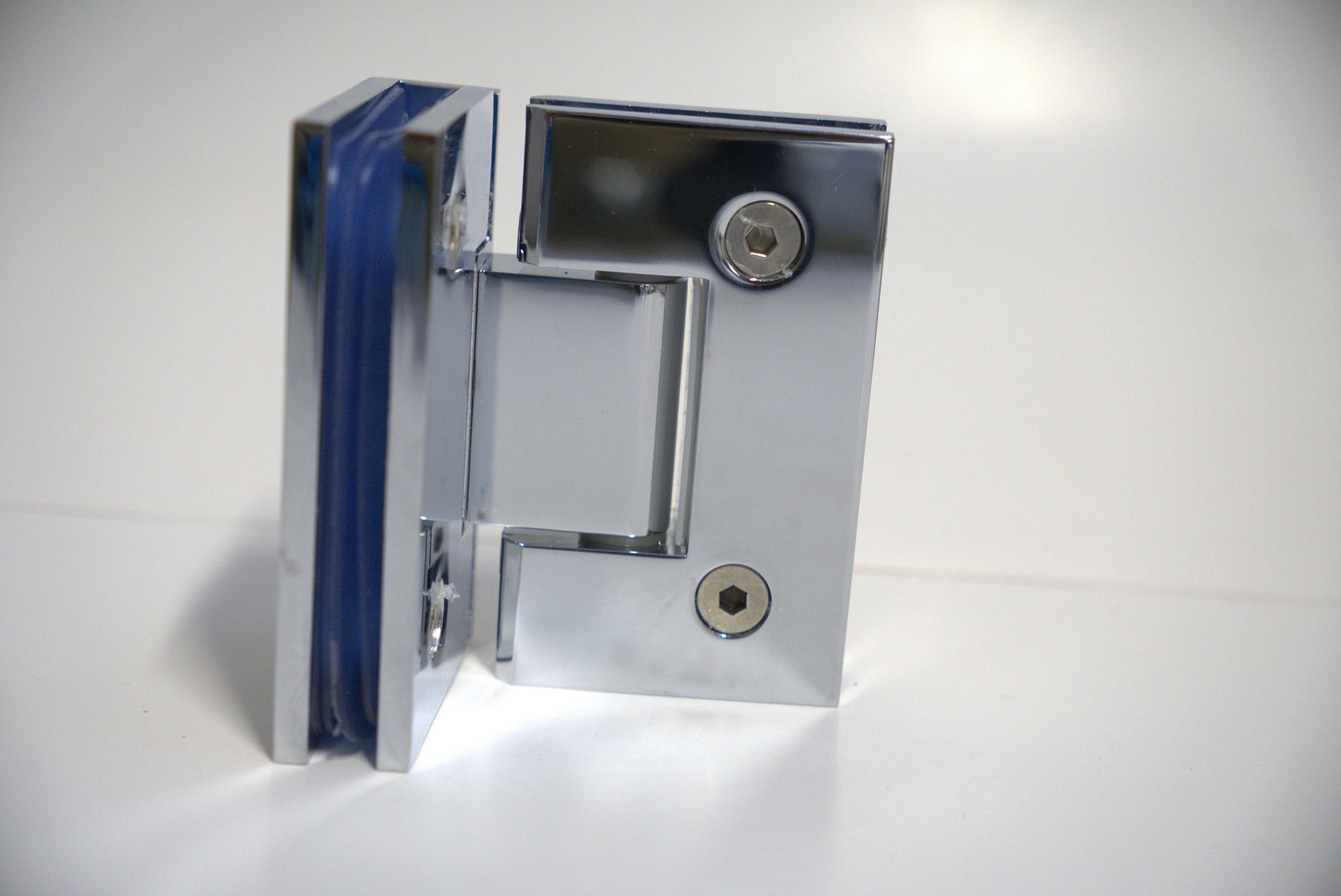

Standard GEN Hinge Glass to Glass 90

The Standard Glass-to-Glass 90° Shower Door Hinge is designed for frameless shower enclosures that require a clean and precise 90-degree connection between two glass panels. With its square profile and solid construction, this hinge delivers smooth operation, strong support, and a modern finish that complements contemporary bathroom designs.

Engineered for corner applications, this hinge provides dependable performance for both residential and commercial glass installations.

Key Features

• Solid Brass Construction: Manufactured from high-quality brass to ensure strength, durability, and resistance to corrosion in wet environments.

• Glass Thickness Compatibility: Suitable for tempered glass panels ranging from 5/16″ to 1/2″ (8–12 mm).

• Secure Glass Holding System: Built-in anti-slip gasket design helps maintain a firm grip on glass panels and minimizes movement after installation.

• Weight Capacity:

  • Two hinges: Supports doors up to 80 lbs (36 kg) with a maximum width of 28″ (711 mm).

  • Three hinges: Supports doors up to 120 lbs (54 kg) with a maximum width of 32″ (813 mm).



• 90° Glass-to-Glass Configuration: Ideal for corner shower layouts requiring a right-angle glass connection.

• Easy Installation: Designed for quick and secure installation using standard tools, with pre-installed gaskets for added convenience.

Available Finishes

• Chrome
• Black
• Brushed Nickel
• Gold

Specifications

• Application: Glass-to-glass shower door installation

• Angle: 90 degrees

• Design: Square profile

• Material: Solid brass

• Glass Type: Tempered safety glass

• Warranty: Includes a 5-year manufacturer warranty (excluding breakage)

Applications

This 90-degree glass-to-glass hinge is ideal for frameless corner shower enclosures, delivering a minimalist look with reliable strength and smooth door operation. Perfect for professional glass installers and modern bathroom projects.

For more information, please review our Warranty Policy or contact us at info@bestglassparts.ca.
