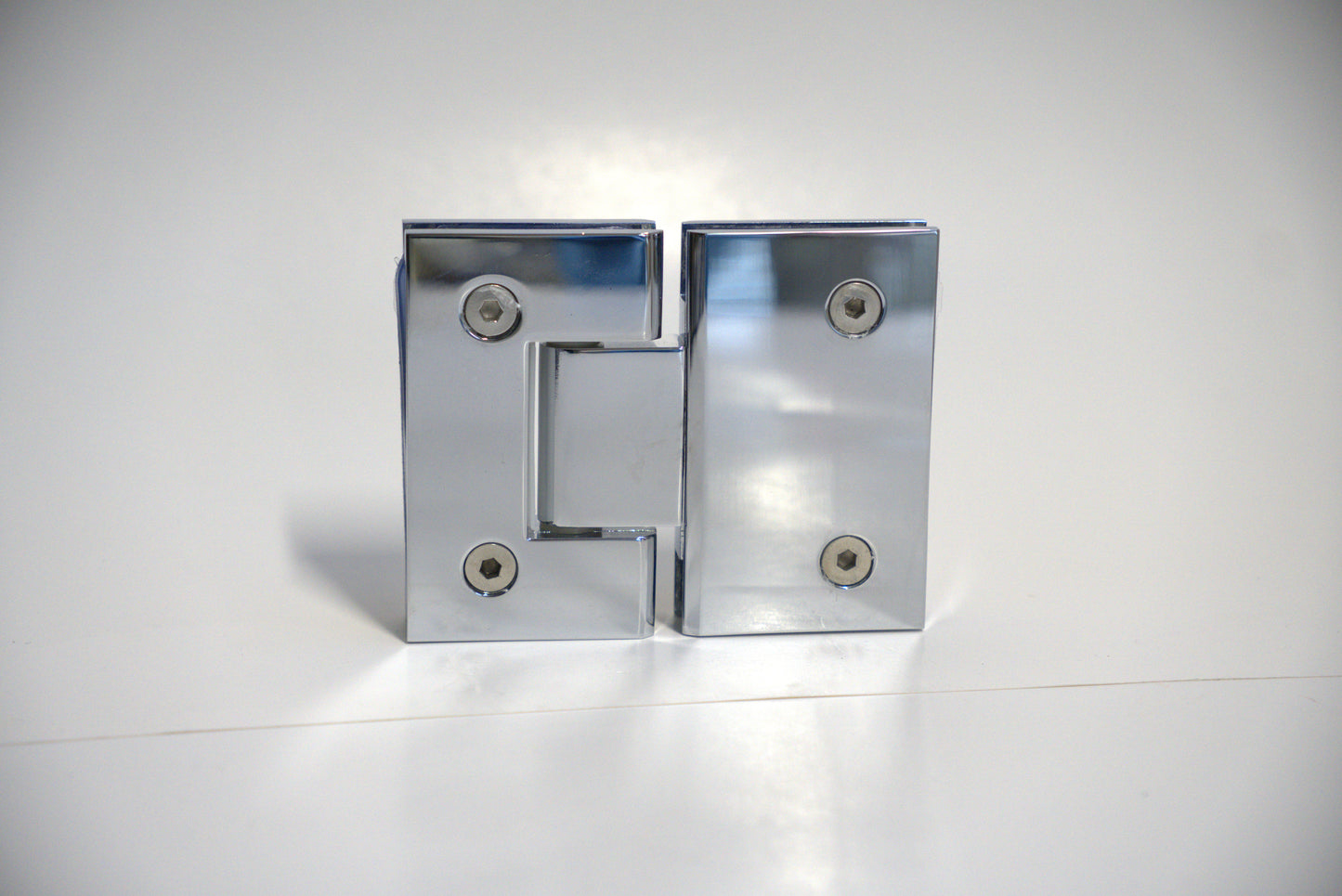

Standard GEN Hinge Glass to Glass 180

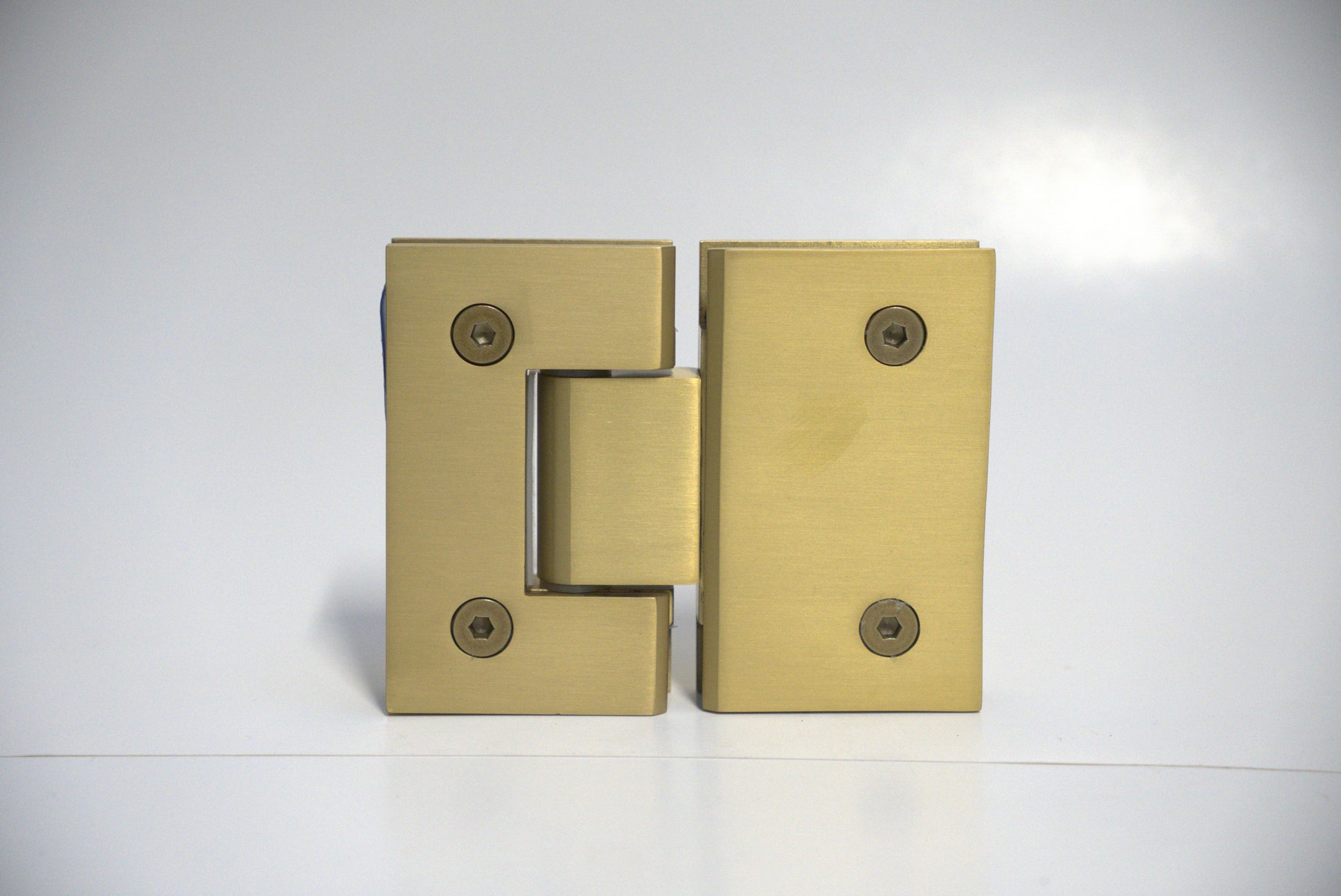

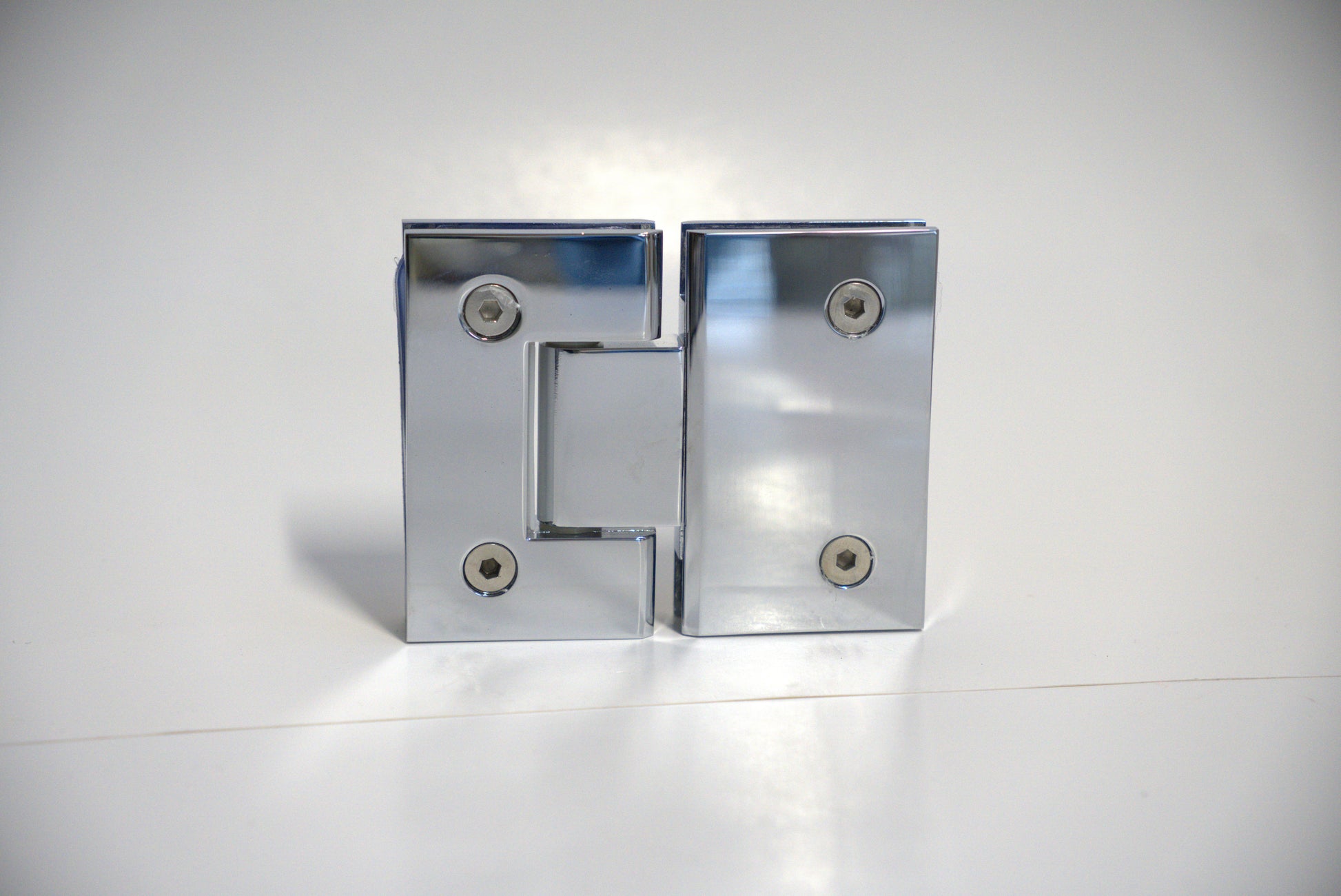

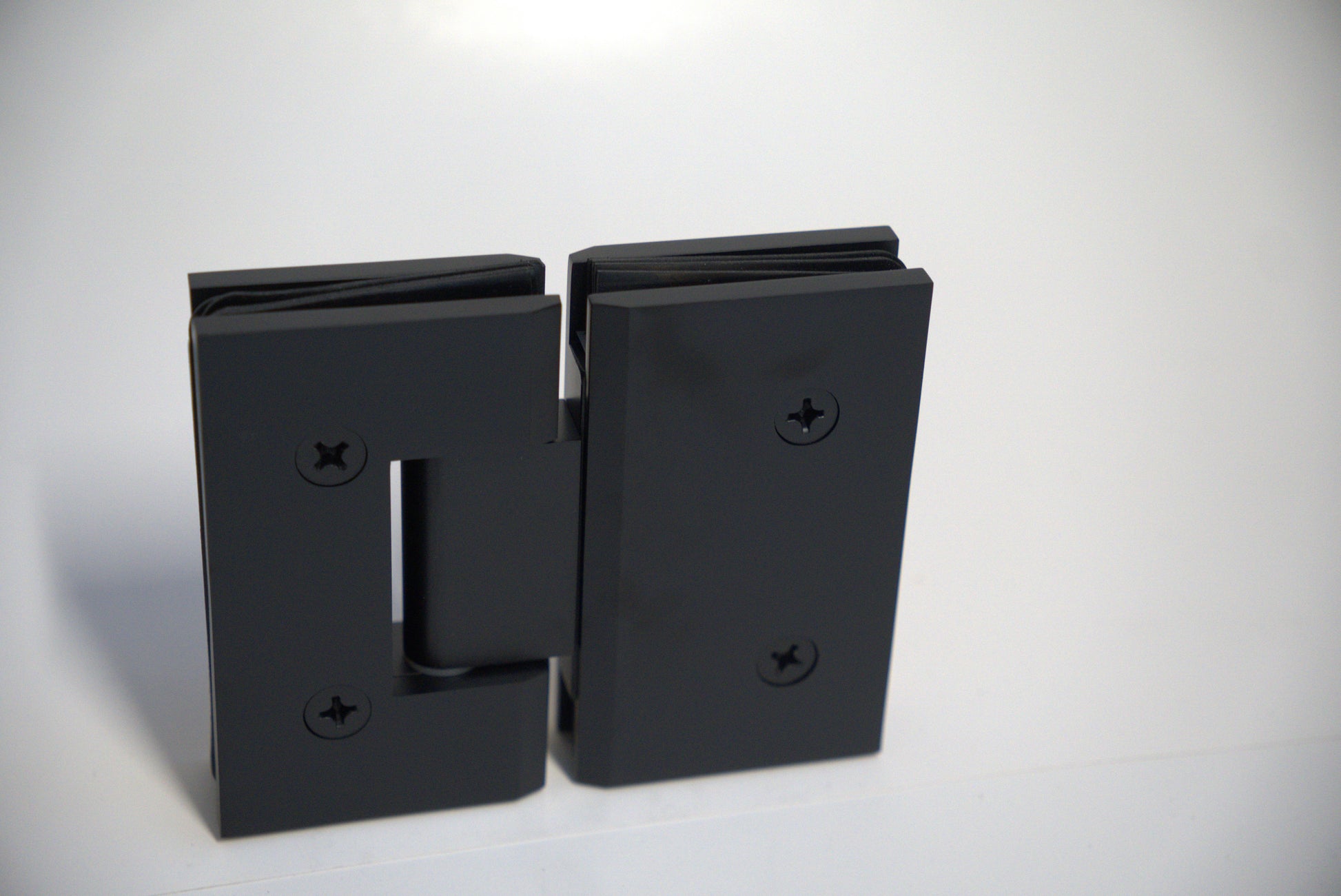

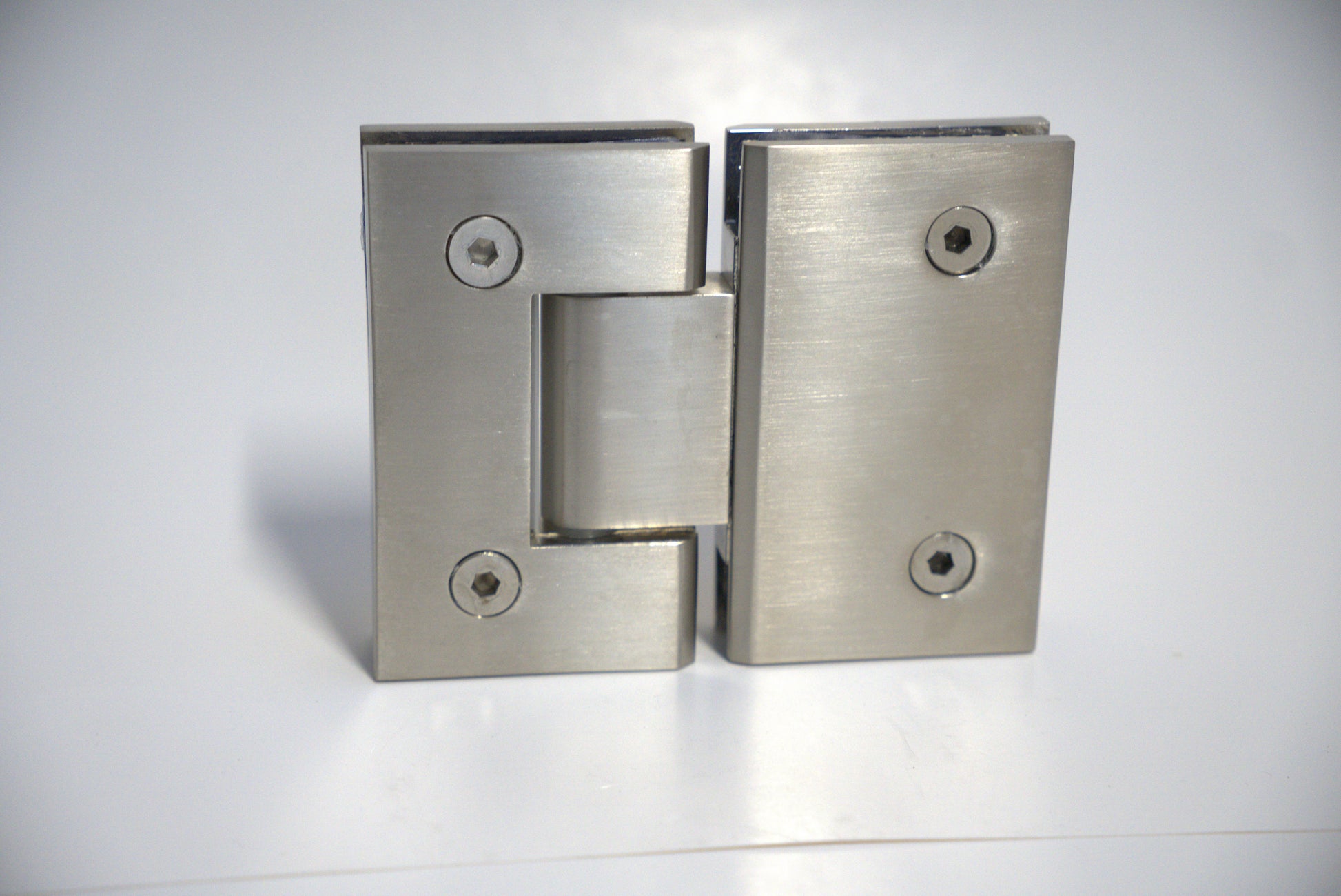

Standard Hinge Wall-to-Glass F Plate (180°)

The Standard Hinge Wall-to-Glass F Plate is a premium solution designed for 180-degree wall-to-glass shower door installations. Built for strength, precision, and modern aesthetics, this hinge delivers smooth functionality while maintaining a clean, frameless look. It is an ideal choice for contemporary shower enclosures where durability and design matter.

Key Features

• Durable Construction: Manufactured from high-quality solid brass for superior strength, long-term performance, and corrosion resistance in wet environments.

• Glass Thickness Compatibility: Suitable for tempered glass ranging from 5/16″ to 1/2″ (8–12 mm).

• Secure Glass Hold: Equipped with pre-installed anti-slip gaskets that enhance grip and protect the glass during operation.

• Precision Adjustment: Includes a 5-degree reversible pin, allowing accurate alignment and smooth door closure.

• Load Capacity:

  • Two hinges: Supports doors up to 80 lbs (36 kg) with a maximum width of 28″ (711 mm)

  • Three hinges: Supports doors up to 120 lbs (54 kg) with a maximum width of 32″ (813 mm)



• 180-Degree Configuration: Designed for straight-line wall-to-glass applications, making it ideal for frameless shower systems.

• Easy Installation: Engineered for straightforward installation using standard tools, with essential gaskets pre-attached for convenience and reliability.

Available Finishes

• Chrome

• Matte Black

• Brushed Nickel

• Gold

Specifications

• Application: Wall-to-Glass, 180°

• Design: F Plate Style

• Material: Solid Brass

• Warranty: 5-year manufacturer warranty (please click here for our warranty policy)

Applications

This hinge is perfect for frameless shower doors requiring a strong and stable wall-to-glass connection. Its sleek profile and reliable performance make it suitable for both residential and commercial bathroom installations.

For more information or assistance, contact us at info@bestglassparts.ca.
