The Overpanel to Side Panel Pivot Patch Fitting is designed to securely support a transom (overpanel) from a sidelite glass panel in frameless glass door systems. Built for strength, precision, and clean architectural appearance, this patch fitting provides stable structural support while maintaining a sleek, modern look.

Ideal for commercial entrances, office partitions, and high-end interior glass installations, this fitting ensures smooth door alignment and dependable long-term performance.

Designed for Structural Support & Smooth Operation

This transom patch fitting is engineered to support glass transoms while allowing proper door mounting in pivot door systems. It is compatible with standard pivot patch configurations and insert systems used in modern frameless installations.

For projects requiring one-way door setups or specialized pivot configurations, compatible insert hardware options are available. For detailed compatibility information regarding inserts and patch fittings, please contact info@bestglassparts.ca.

For transoms exceeding 100 lbs (45.4 kg), ceiling support is required to prevent slippage under excessive load. Additional structural patch fittings may be necessary depending on project specifications.

Glass Compatibility

• Suitable for 3/8” (10 mm) and 1/2” (12 mm) tempered glass

• Glass fabrication required – please refer to CAD/PDF drawings before production

Performance Specifications

• Maximum Weight Capacity: 100 kg (220 lbs)

• Maximum Door Width: 39” (1000 mm)

• Maximum Door Height: 102” (2590 mm)

• Cycle Tested: 500,000 operations

• Warranty: 5 Years

Durable Construction

Manufactured from high-grade aluminum with a custom Grade 304 stainless steel cover plate, this overpanel to side panel pivot patch fitting is suitable for both interior and exterior applications. It offers excellent durability, corrosion resistance, and structural reliability for demanding environments.

Available Finishes (Best Glass Parts)

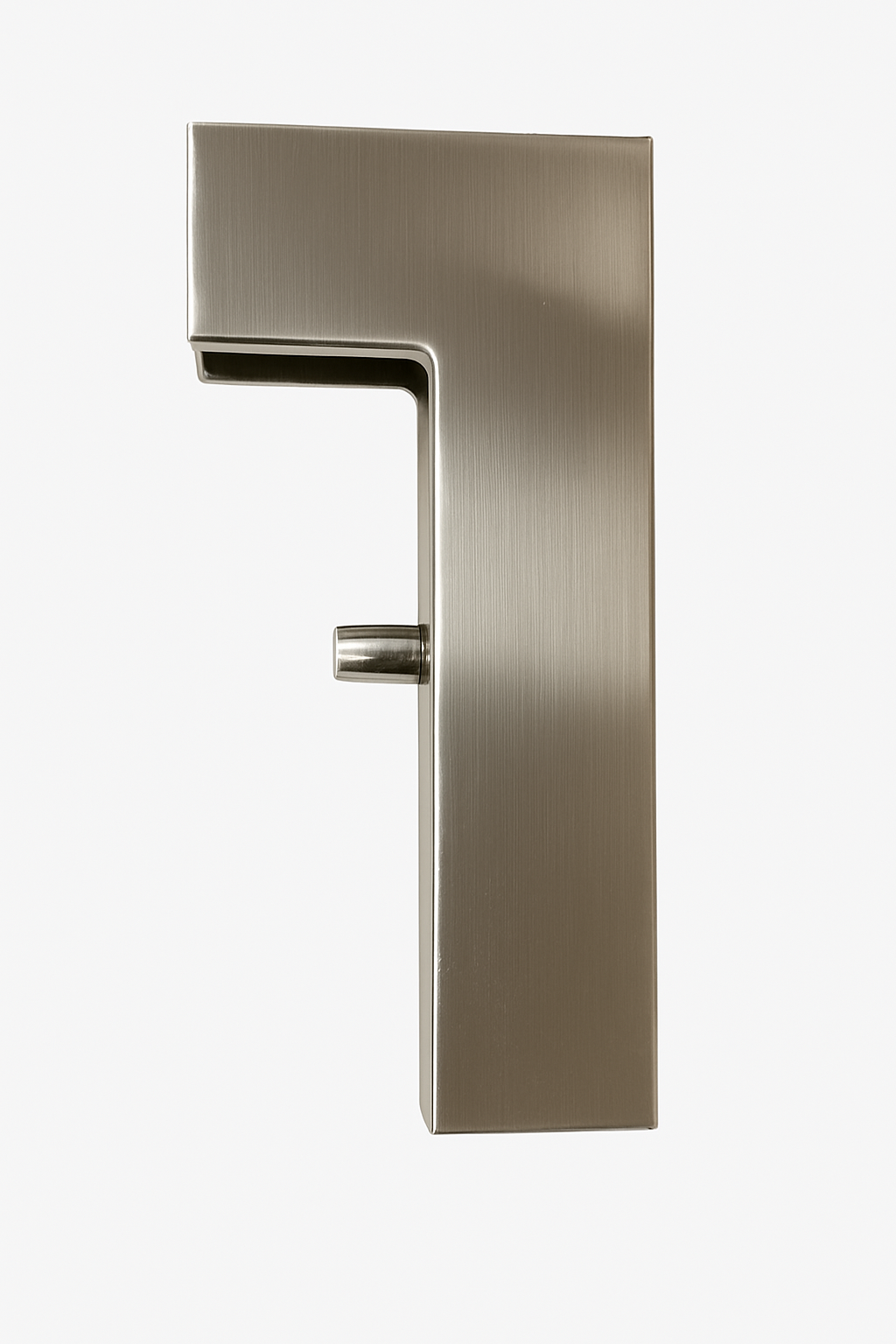

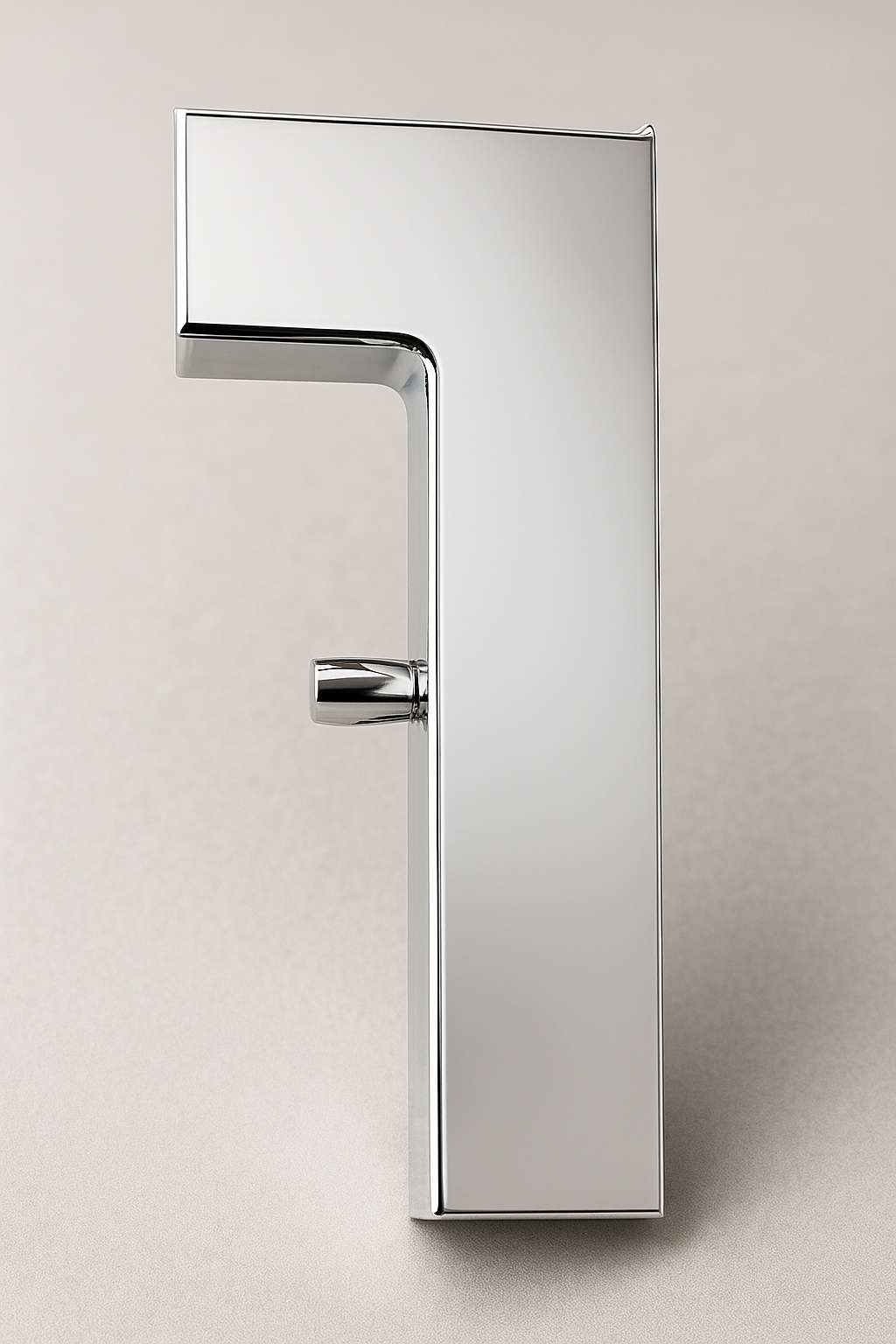

• Chrome

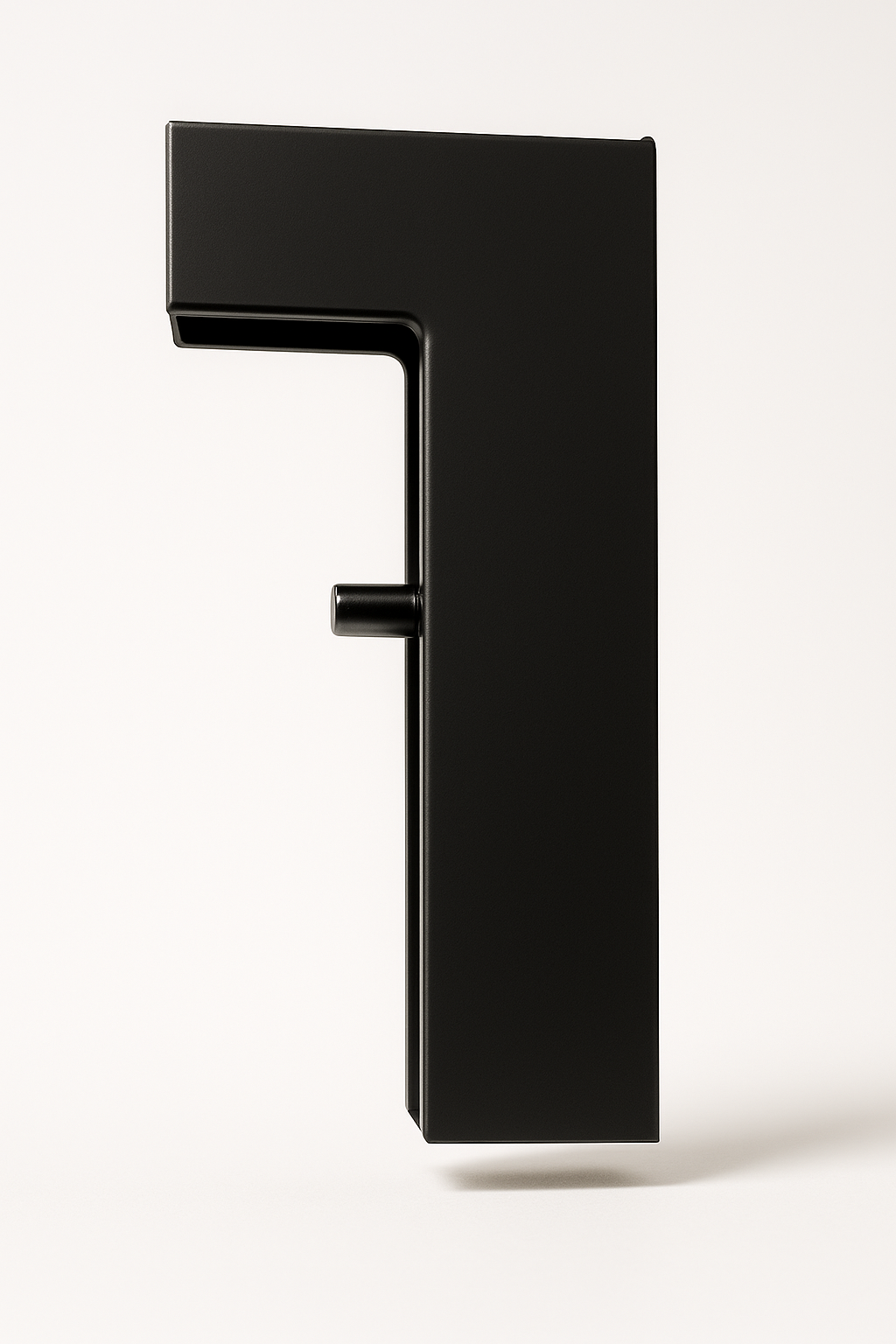

• Matte Black

• Brushed Nickel

For technical assistance, compatibility details, or hardware insert options, please contact us at info@bestglassparts.ca.
