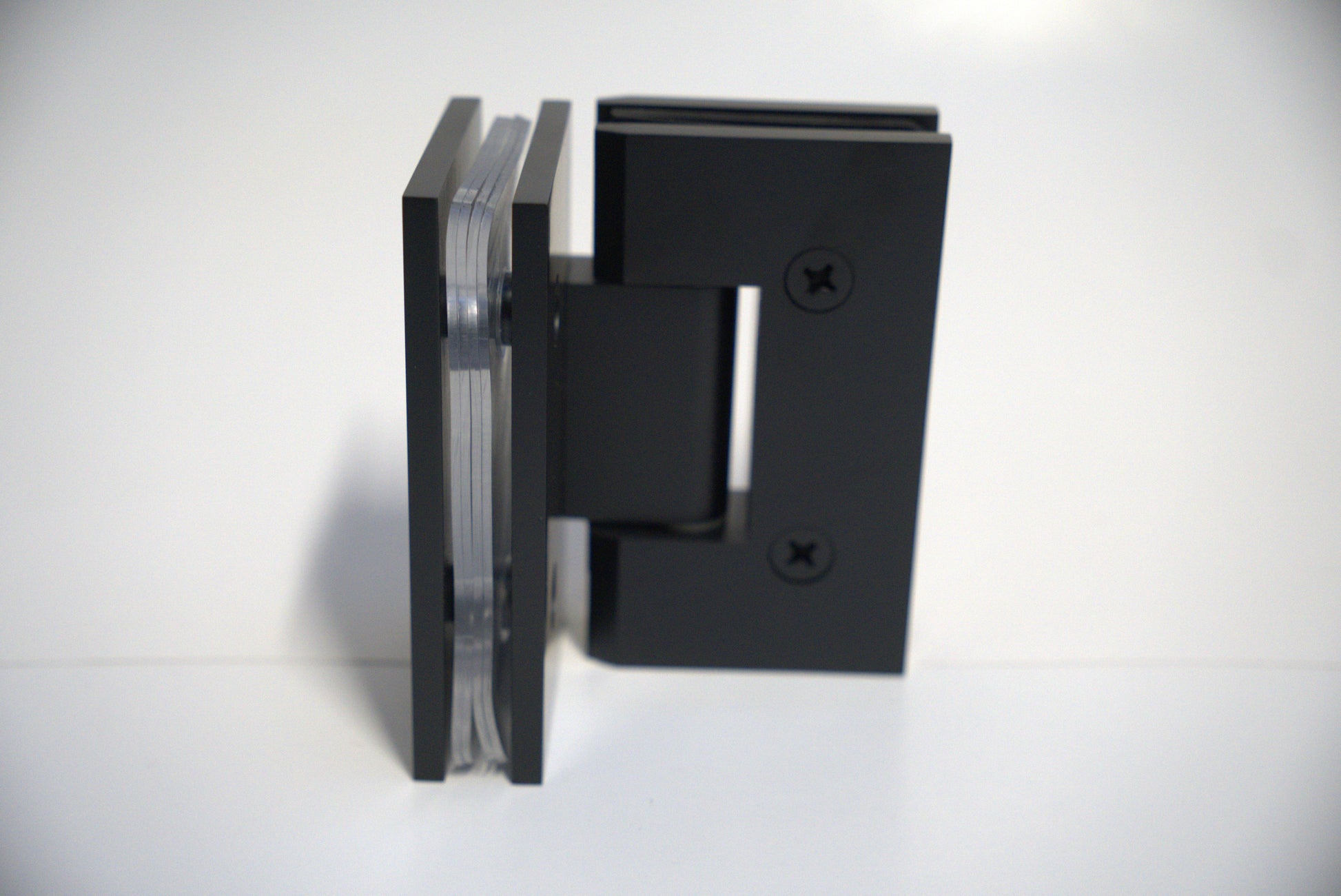

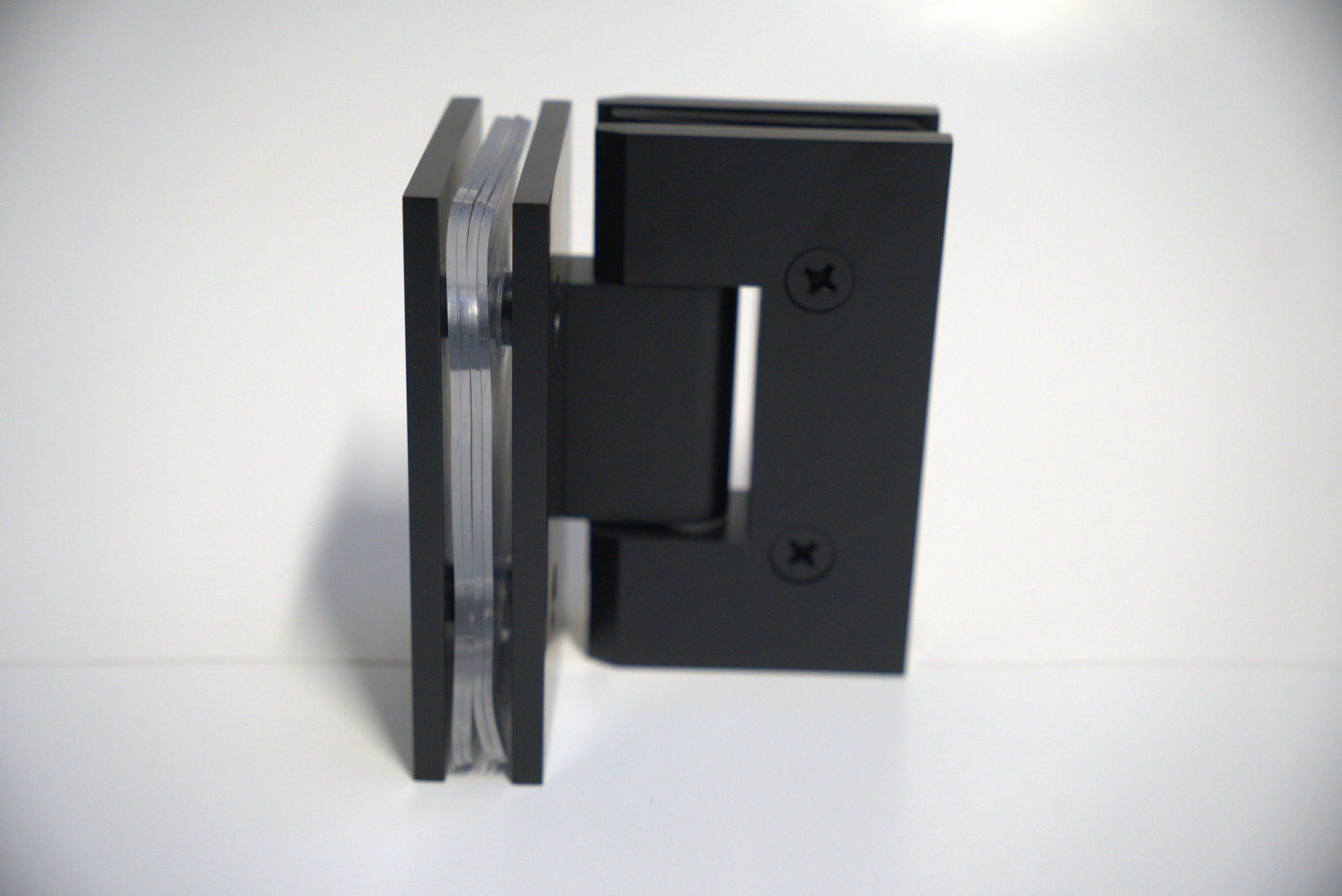

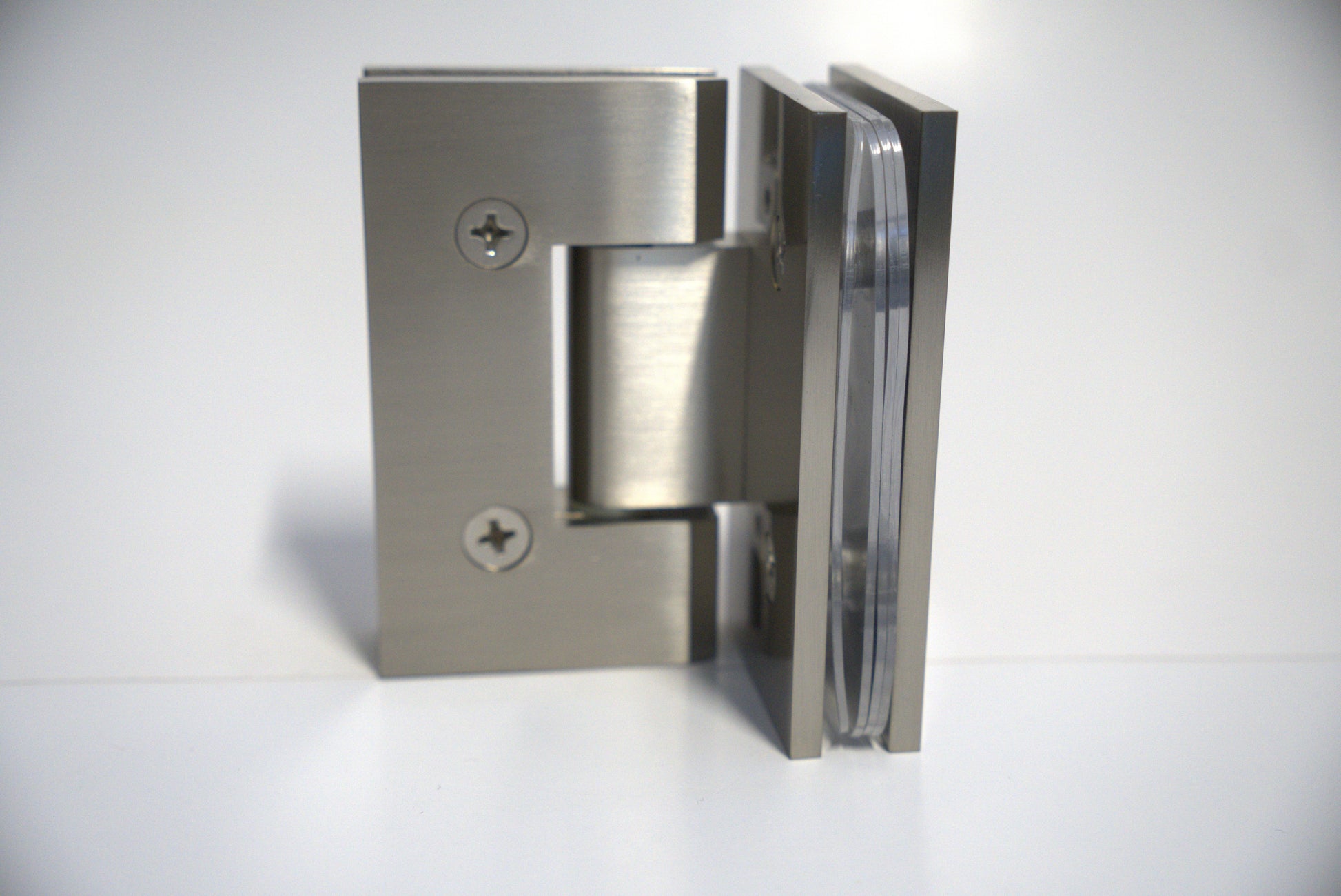

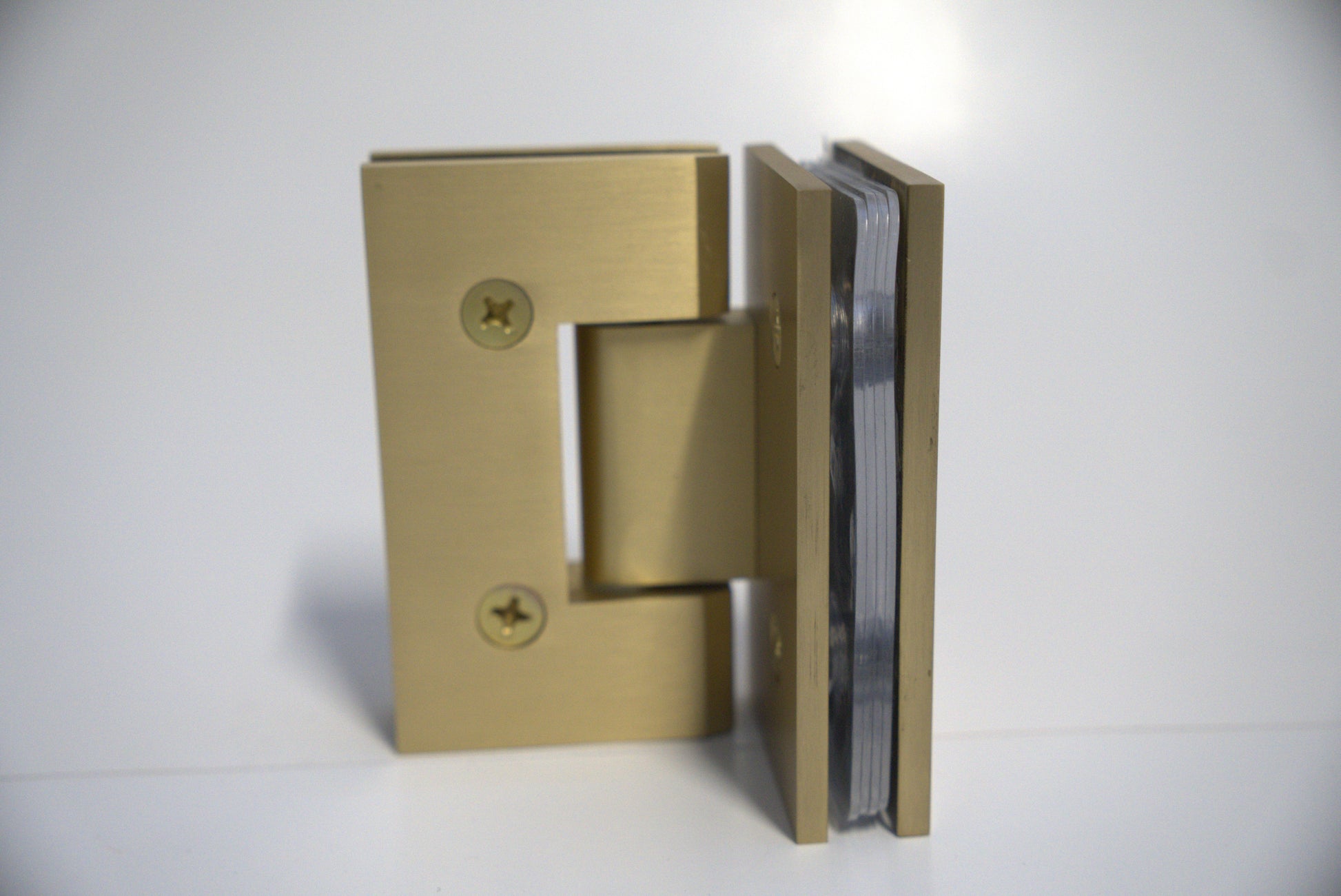

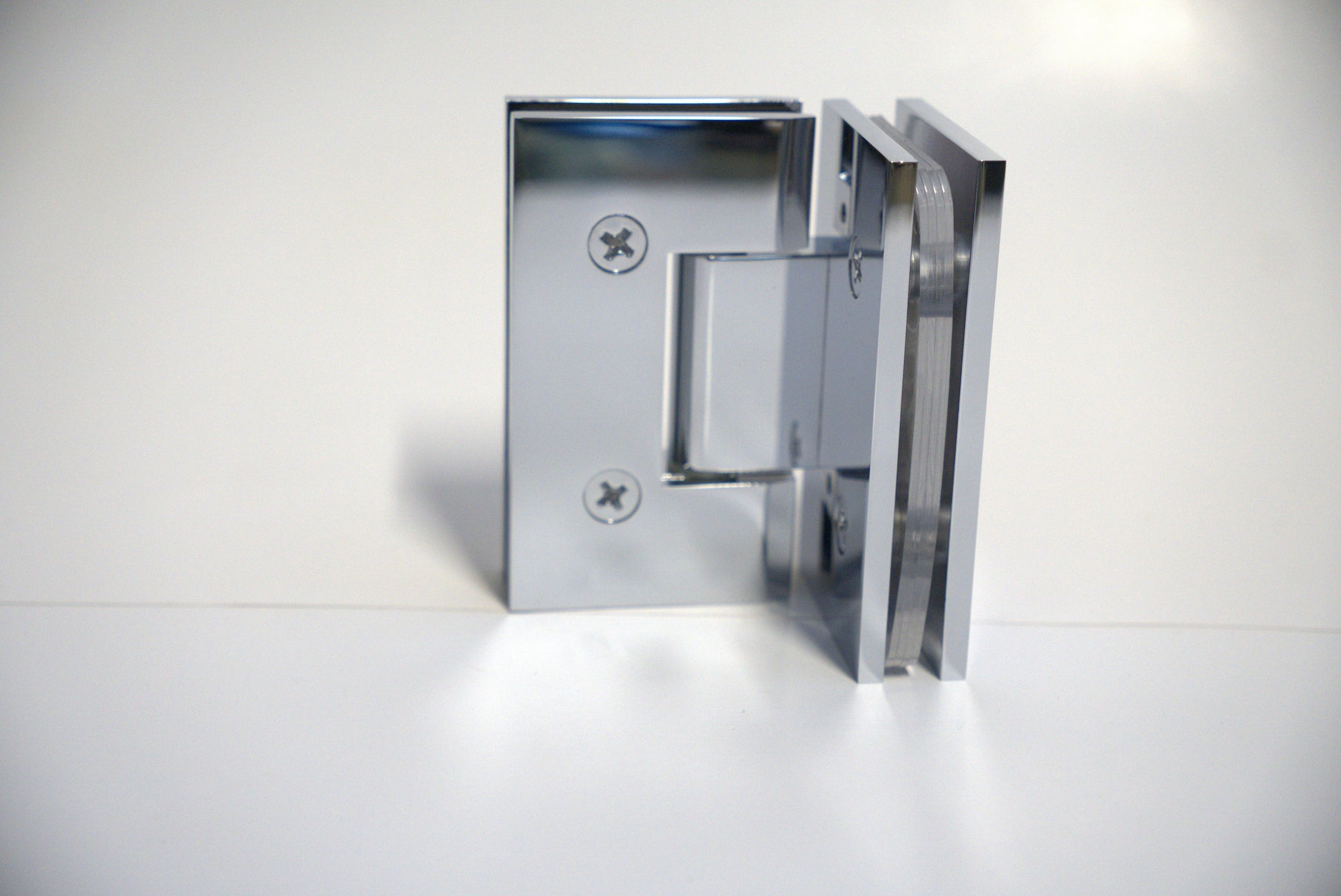

Hinge Heavy Duty Glass To Glass 90

The Hinge Heavy Duty Glass To Glass 90 is a premium square shower hinge engineered for secure 90-degree glass-to-glass connections in frameless shower enclosures. Designed for strength and clean aesthetics, this heavy-duty hinge provides a stable corner connection between glass panels while maintaining a sleek, modern appearance. It is an ideal solution for custom shower layouts that require durability without compromising design.

Key Features:

Solid Brass Construction

Manufactured from high-quality brass to ensure superior durability, corrosion resistance, and long-term performance in humid environments.

Glass Thickness Compatibility

Suitable for tempered glass panels ranging from 3/8” to 1/2” (10–12 mm).

Heavy-Duty Weight Capacity

Two Hinges: Supports doors up to 110 lbs (50 kg) with a recommended maximum width of 36” (914 mm).

Three Hinges: Supports doors up to 140 lbs (63 kg) with a recommended maximum width of 36” (914 mm).

90° Glass-to-Glass Design

Specifically designed for right-angle glass connections, providing structural support and precise alignment in frameless shower configurations.

Fixed Precision Installation

Non-adjustable hinge configuration ensures secure positioning and long-lasting stability once installed.

Installer-Friendly Setup

Engineered for straightforward installation using standard tools for professional glass applications.

Available Finishes

• Chrome
• Brushed Nickel
• Matte Black
• Gold

Specifications

Application: Glass-to-Glass 90° Shower Door Hinge

Style: Square Design

Material: Solid Brass

Glass Type: Tempered Glass

Please click on View Technical Specification PDF to check the dimensions and glass fabrication details.

Warranty

5-year manufacturer warranty. (Click here to view our warranty policy)

Availability & Delivery

Available for warehouse pickup, subject to availability.

Delivery options available.

Applications

The Hinge Heavy Duty Glass To Glass 90 is ideal for frameless shower door systems requiring a strong and precise 90-degree glass connection. Suitable for residential renovations, custom bathroom builds, and commercial glass installations where structural integrity and a refined finish are essential.

For product inquiries, contractor pricing, or bulk orders, please contact info@bestglassparts.ca.
