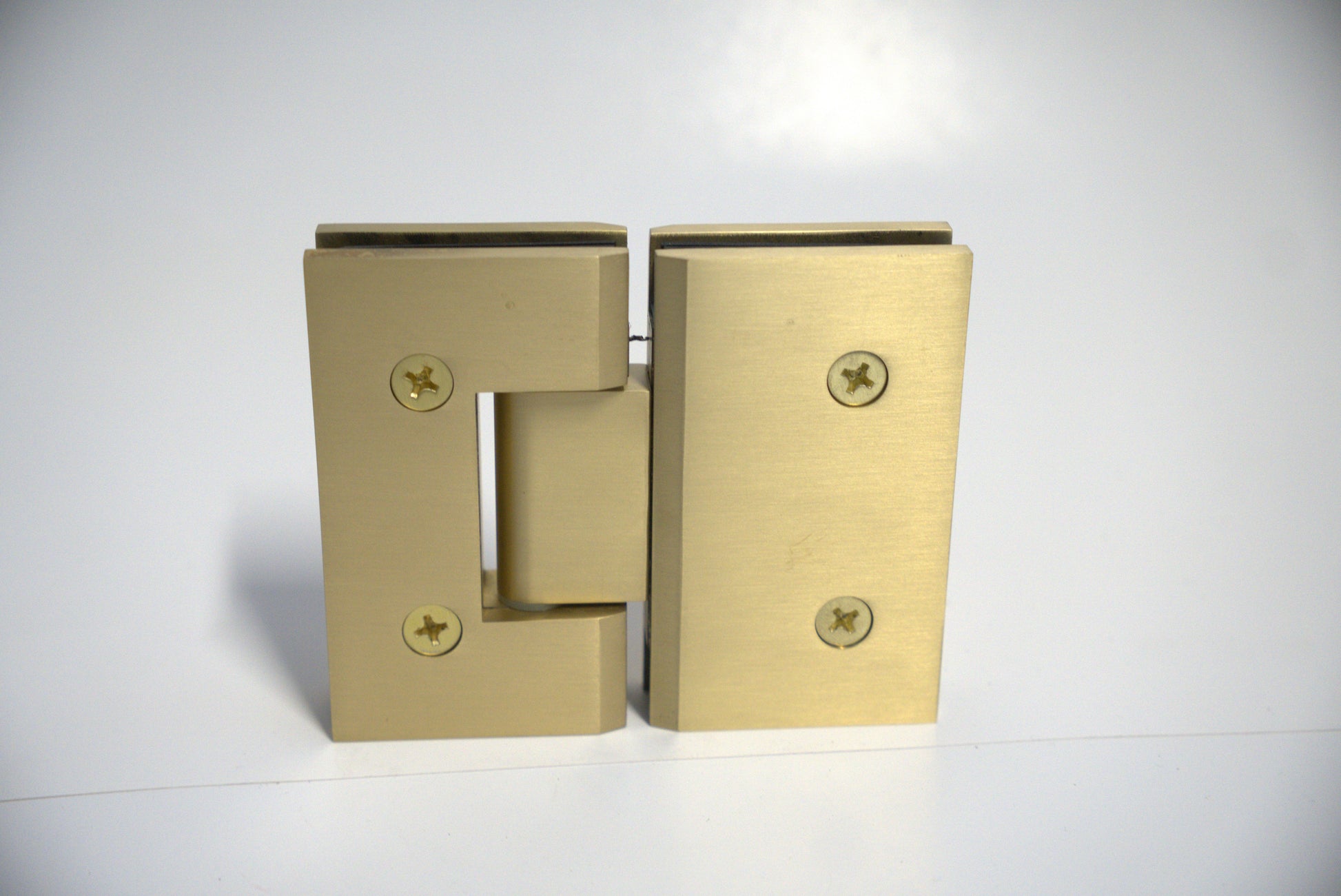

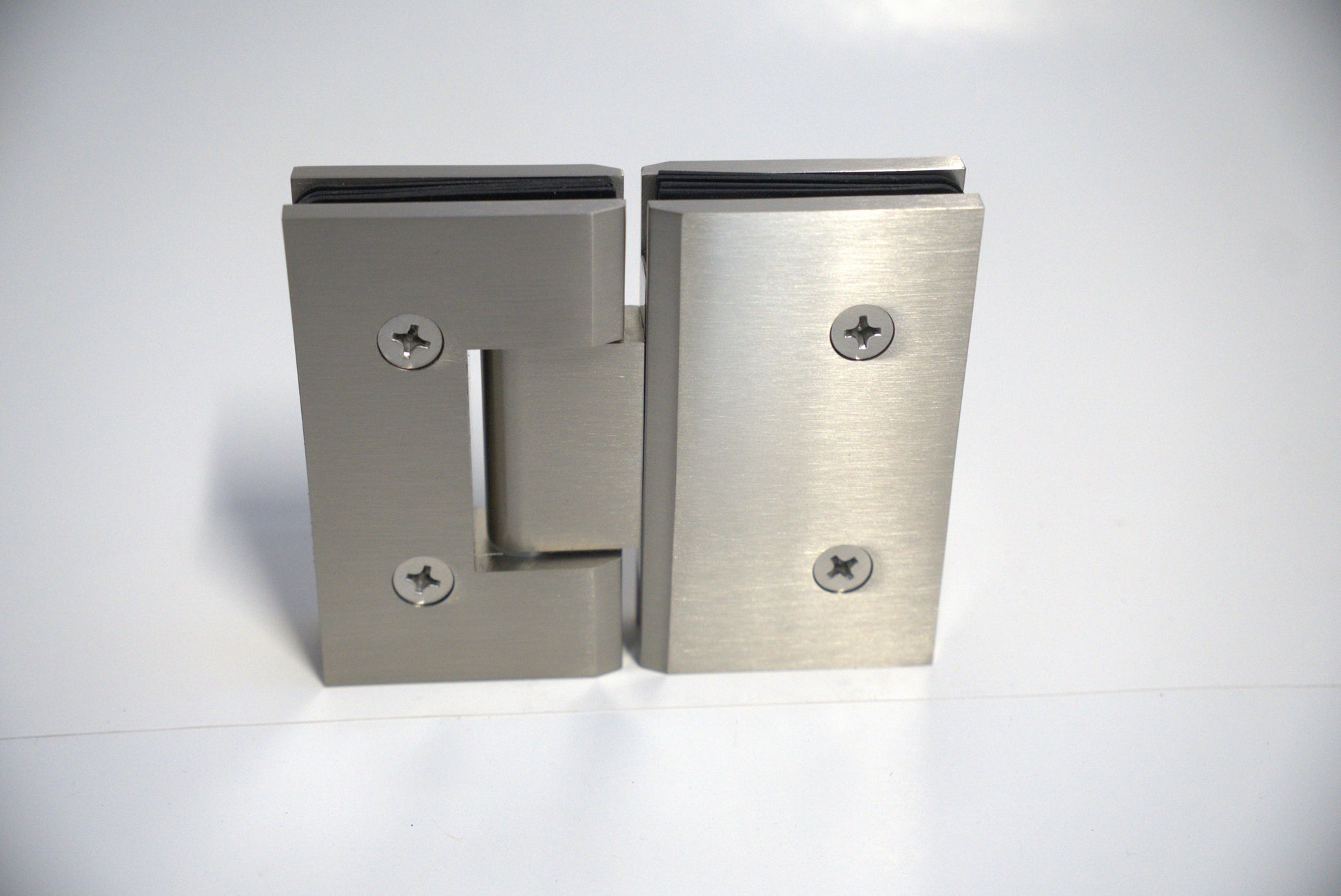

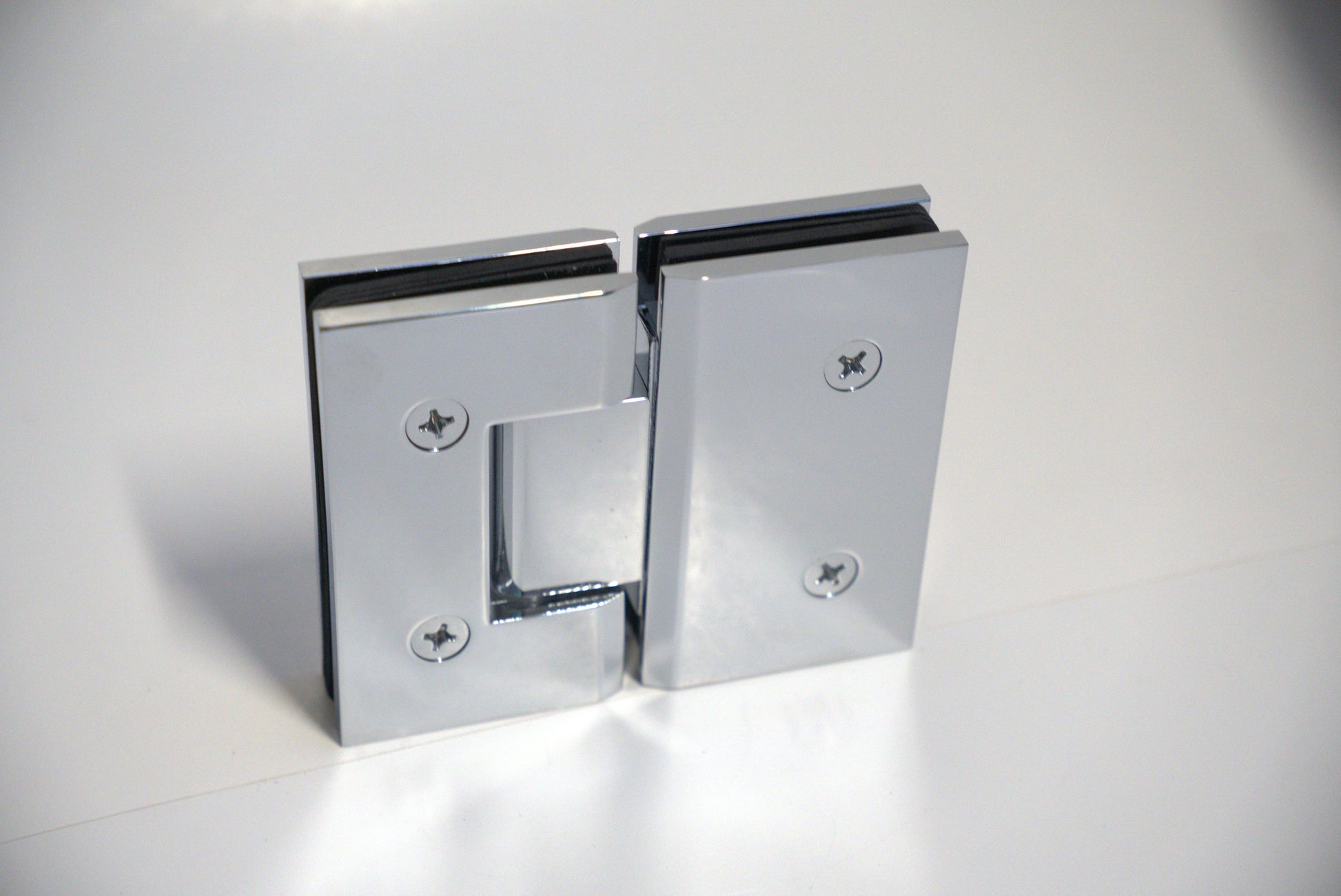

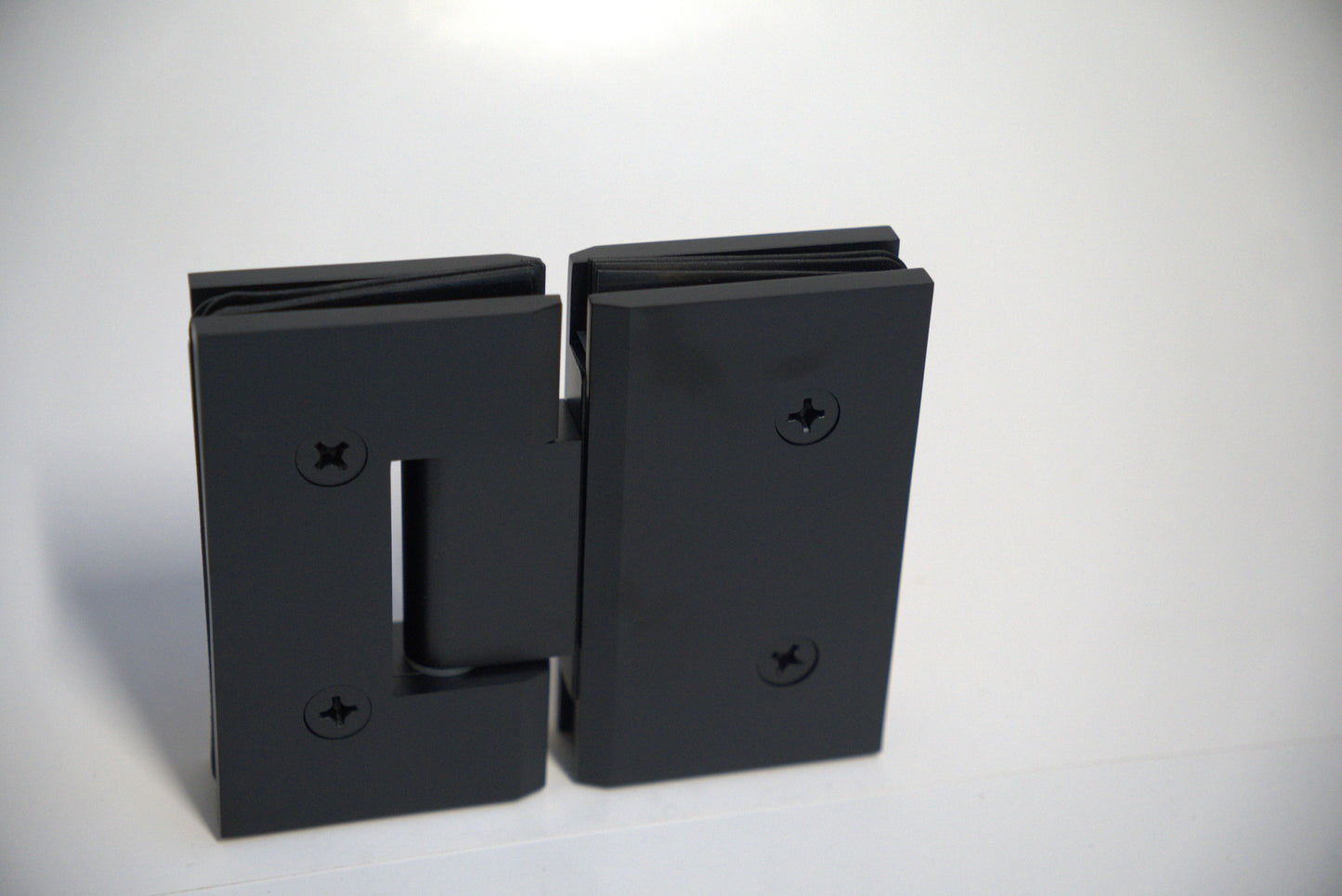

Hinge Heavy Duty Glass To Glass 180

The Hinge Heavy Duty Glass To Glass 180 is a premium square shower hinge designed for 180° glass-to-glass applications in frameless shower enclosures. Built for strength and clean architectural lines, this heavy-duty hinge creates a seamless connection between two fixed or movable glass panels while maintaining a sleek, modern appearance.

Engineered for durability and stability, it is ideal for contemporary bathroom installations that require both structural performance and refined design.

Key Features

Solid Brass Construction

Manufactured from high-quality brass to ensure long-lasting durability, corrosion resistance, and reliable performance in humid shower environments.

Glass Thickness Compatibility

Suitable for tempered glass panels ranging from 3/8” to 1/2” (10–12 mm).

Heavy-Duty Weight Capacity

Two Hinges: Supports doors up to 110 lbs (50 kg) with a recommended maximum width of 36” (914 mm).

Three Hinges: Supports doors up to 140 lbs (63 kg) with a recommended maximum width of 36” (914 mm).

180° Glass-to-Glass Design

Designed specifically for inline 180-degree glass connections, ensuring proper alignment and a streamlined frameless appearance.

Fixed Precision Installation

Non-adjustable hinge configuration provides secure positioning and stable alignment once installed.

Installer-Friendly Setup

Engineered for straightforward installation using standard tools for professional glass applications.

Available Finishes

• Chrome
• Black
• Brushed Nickel
• Gold

Specifications

Application: Glass-to-Glass 180° Shower Door Hinge

Style: Square Design

Material: Solid Brass

Glass Type: Tempered Glass

Please click on View Technical Specification PDF to check the dimensions and glass fabrication details.

Warranty

5-year manufacturer warranty. (Click here to view our warranty policy)

Availability & Delivery

Available for warehouse pickup, subject to availability.

Delivery options available.

For product inquiries, contractor pricing, or bulk orders, please contact info@bestglassparts.ca.

Applications

The Hinge Heavy Duty Glass To Glass 180 is ideal for frameless shower door systems requiring a strong inline glass connection. It is well-suited for custom bathroom renovations, residential installations, and commercial glass projects where durability, stability, and a clean modern finish are essential.
