Standard GEN Hinge Glass to Glass 135

Standard Hinge Glass-to-Glass 135° (Neo-Angle Shower Hinge)

The Standard Hinge Glass-to-Glass 135° is a premium neo-angle shower hinge designed for modern frameless glass installations. Engineered to connect two glass panels at a precise 135-degree angle, this hinge delivers smooth operation, strong support, and a clean, contemporary appearance. It is an ideal solution for neo-angle shower enclosures in both residential and commercial applications.

Built for durability and performance, this glass-to-glass hinge combines solid construction with refined design, making it a reliable choice for high-end shower projects.

Key Features

• Premium Solid Brass Construction

  Manufactured from high-quality brass to ensure long-term durability, strength, and excellent corrosion resistance in wet environments.

• Glass Thickness Compatibility

  Designed for tempered glass ranging from 5/16″ to 1/2″ (8–12 mm).

• Anti-Slip Glass Protection

  Features pre-installed tactile gaskets with anti-slip technology to enhance grip, protect the glass, and improve overall hinge stability.

• Weight Capacity

  • Two hinges: Supports doors up to 80 lbs (36 kg) with a maximum door width of 28″ (711 mm)

  • Three hinges: Supports doors up to 120 lbs (54 kg) with a maximum door width of 32″ (813 mm)



• 135-Degree Neo-Angle Design

  Specifically designed for neo-angle and corner shower enclosures, providing a sleek, frameless look with precise glass alignment.

• Easy Installation

  Designed for quick and straightforward installation using standard tools. Required gaskets come pre-glued for a secure and efficient setup.

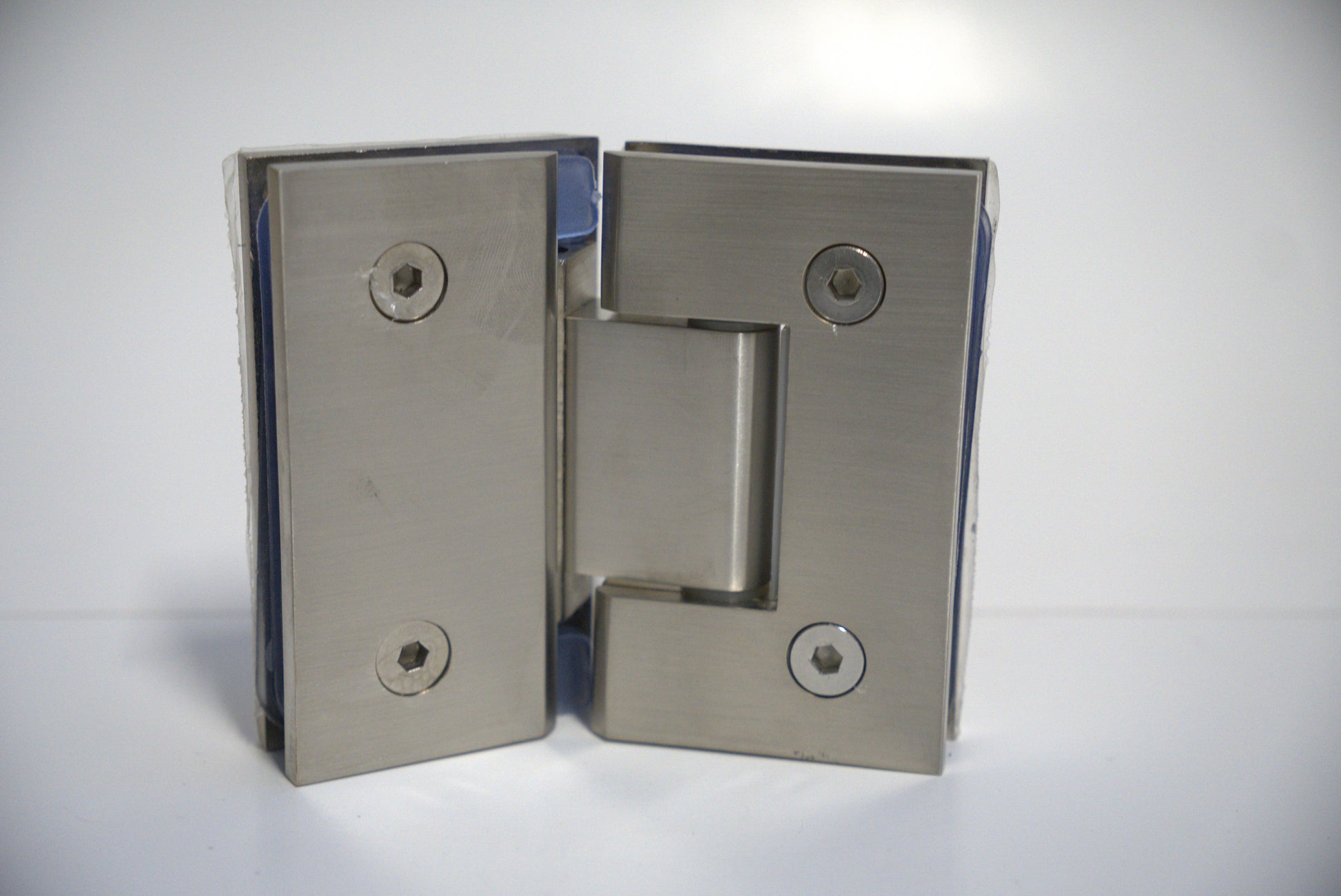

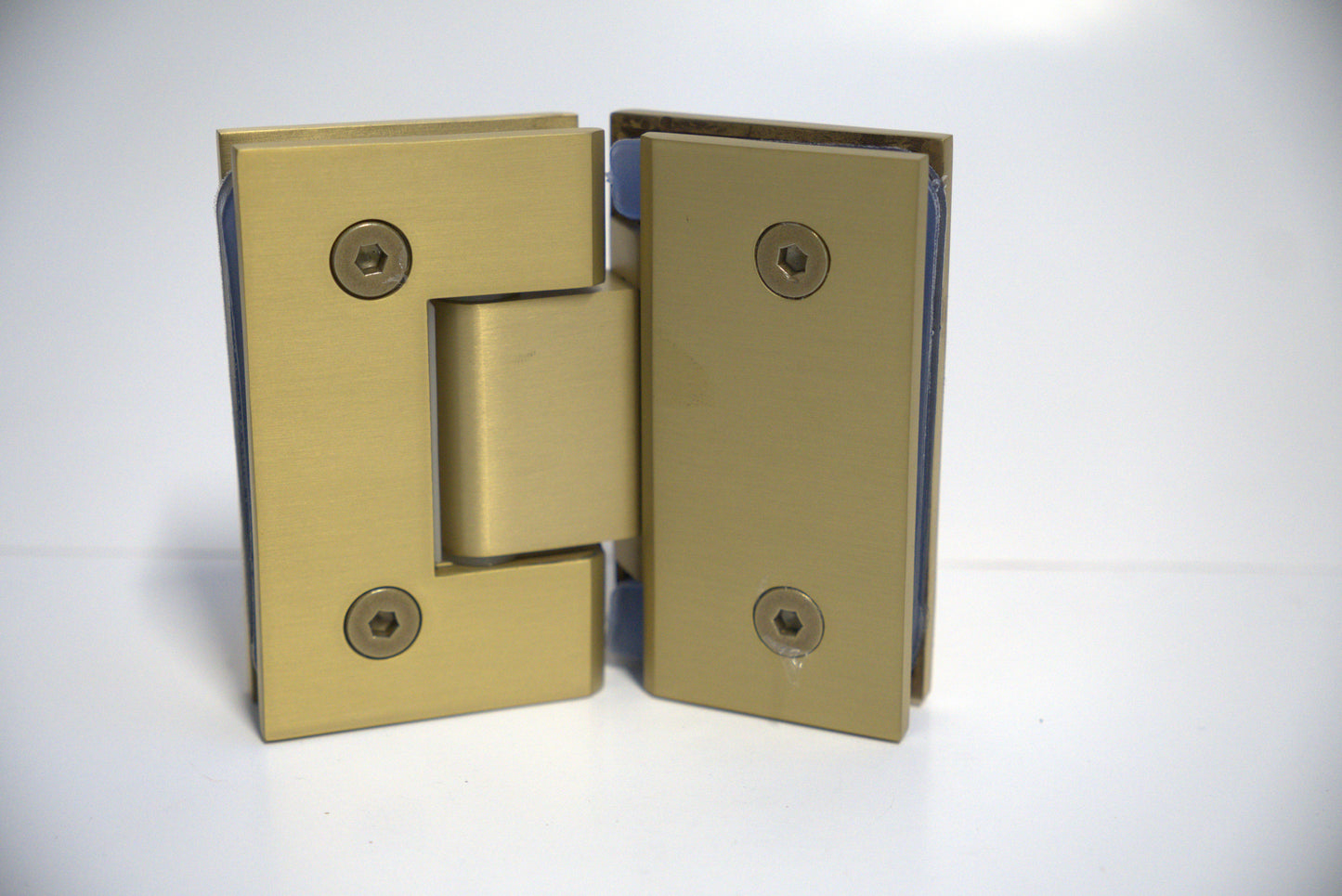

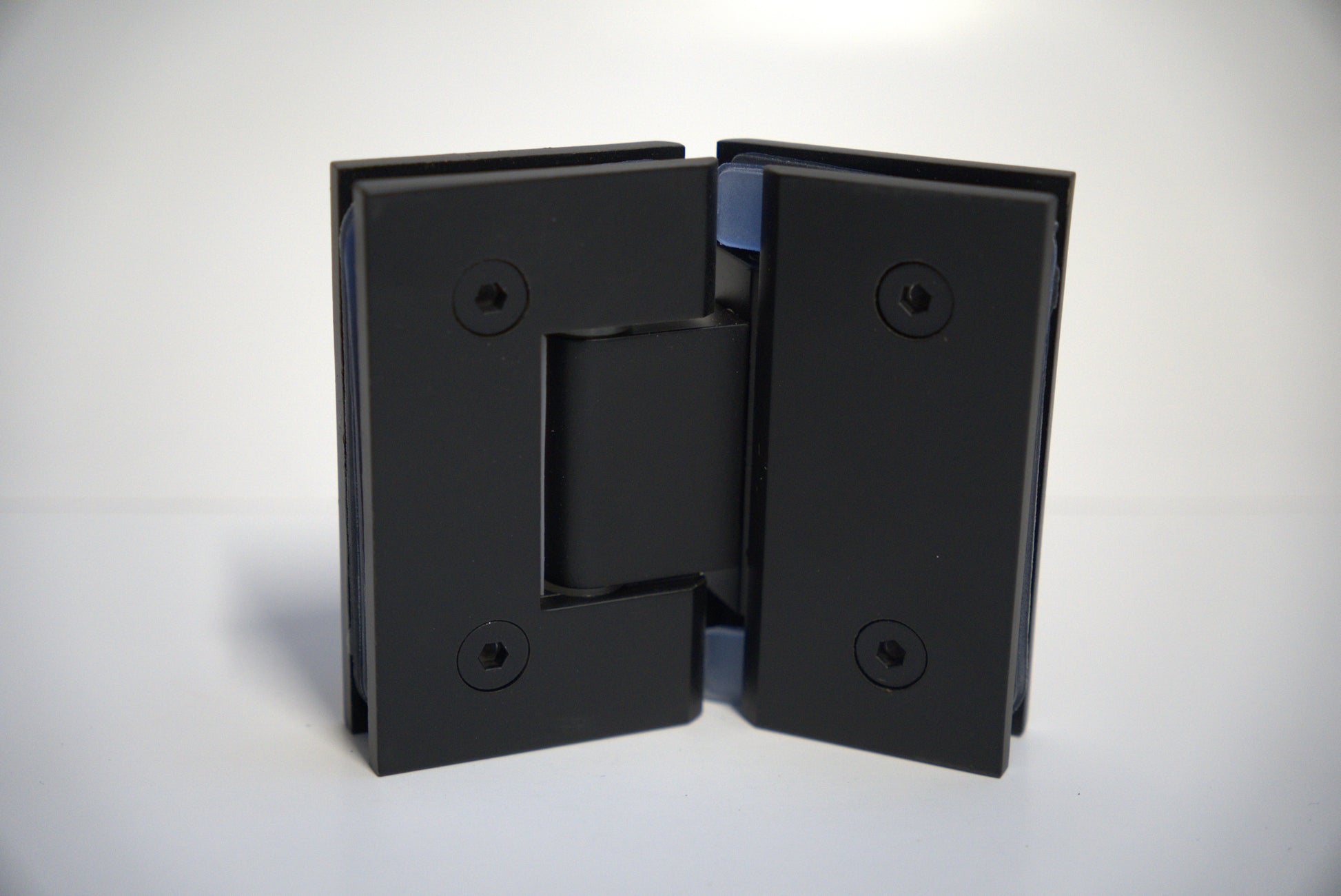

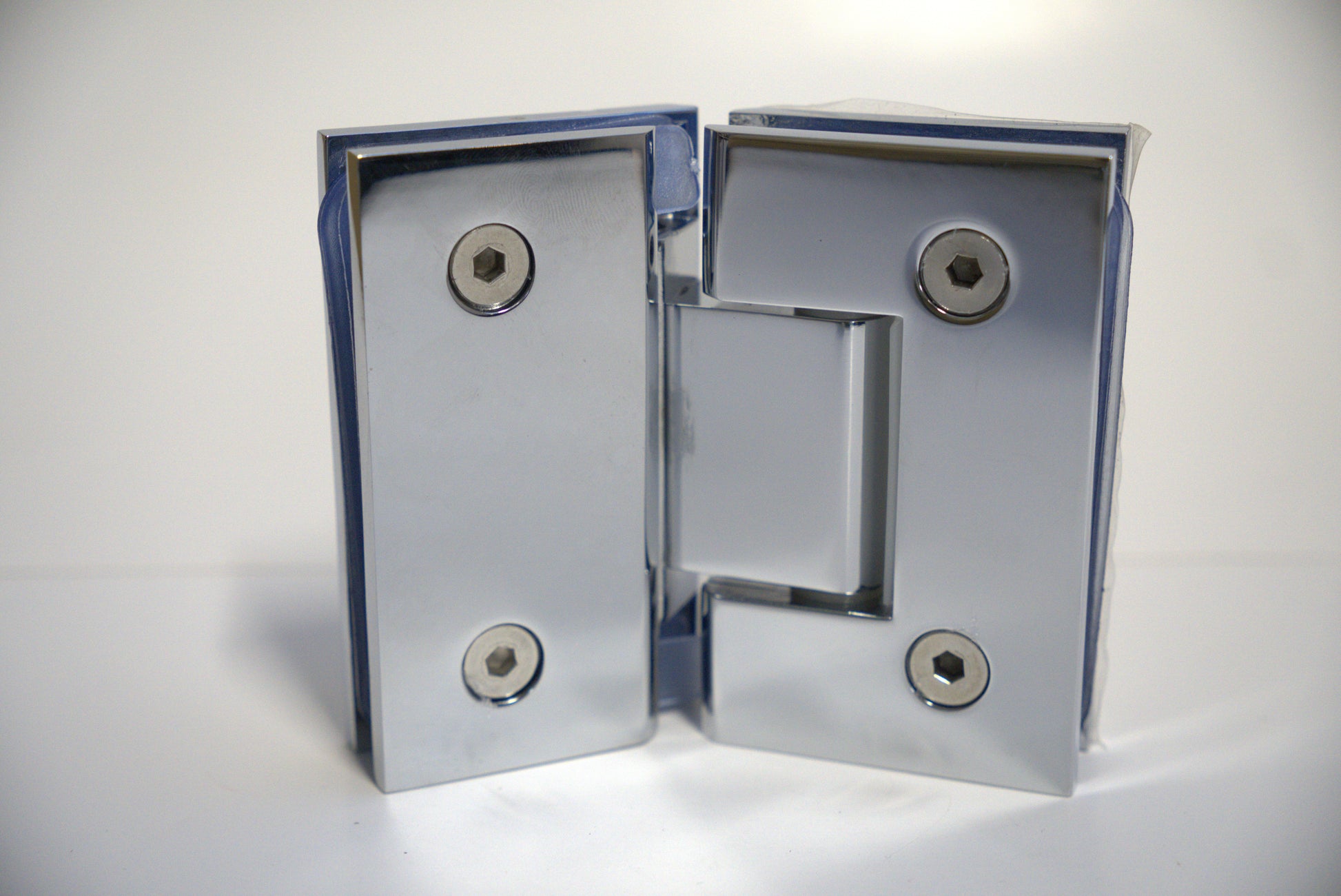

Available Finishes

• Chrome
• Black
• Brushed Nickel
• Gold

Specifications

• Application: Glass-to-Glass, 135°

• Material: Solid Brass

• Style: Neo-Angle Shower Hinge

• Warranty: 5-Year Manufacturer Warranty (please click here for our warranty policy)

Applications

The Standard Hinge Glass-to-Glass 135° is ideal for neo-angle frameless shower enclosures, offering a strong and secure connection between glass panels while maintaining a modern, minimal aesthetic. Perfect for custom shower doors, luxury bathrooms, and professional glass installations.

For more information or assistance, contact us at info@bestglassparts.ca.
